24/1 PAIR STR CU CMP/CL3P/FPLP OAS ORANGE GEN LOW CAP 1000 FT
Southwire #: 33191103
Application & Features
Genesis® Plenum Rated RS-485 Shielded Cable is suitable for installation as follows:
- In fabricated ducts as described in NEC 300.22(B).
- In other spaces used for environmental air as described in NEC 300.22(C).
- In risers.
- Within buildings in other than air-handling spaces and risers.
Specifications
| Size (AWG or kcmil) (mm2) | 24 AWG 24 AWG | |
| Number of Pairs | 1 1 | |
| Stranding | Stranded Stranded | |
| Shielding | Shielded Shielded | |
| Nom. OD (mils) (mm) | 179 4.55 | mils mm |
| Nominal Total Weight (lbs/1000') (kgs/km) | 17 25 | lbs/1000' kgs/km |
Standards & References
Genesis® Plenum Rated RS-485 Shielded Cable meets or exceeds the following:
- NFPA 262 - Plenum Rated
- CSA C22.2 No. 2556 - FT6 Rated
- UL 444 - Communication Cables, Type CMP
- UL 1424 - Cables for Power-Limited Fire-Alarm Circuits, Type FPLP
- UL 13 - Power-Limited Circuit Cables, Type CL3P
- REACH/RoHS Compliant

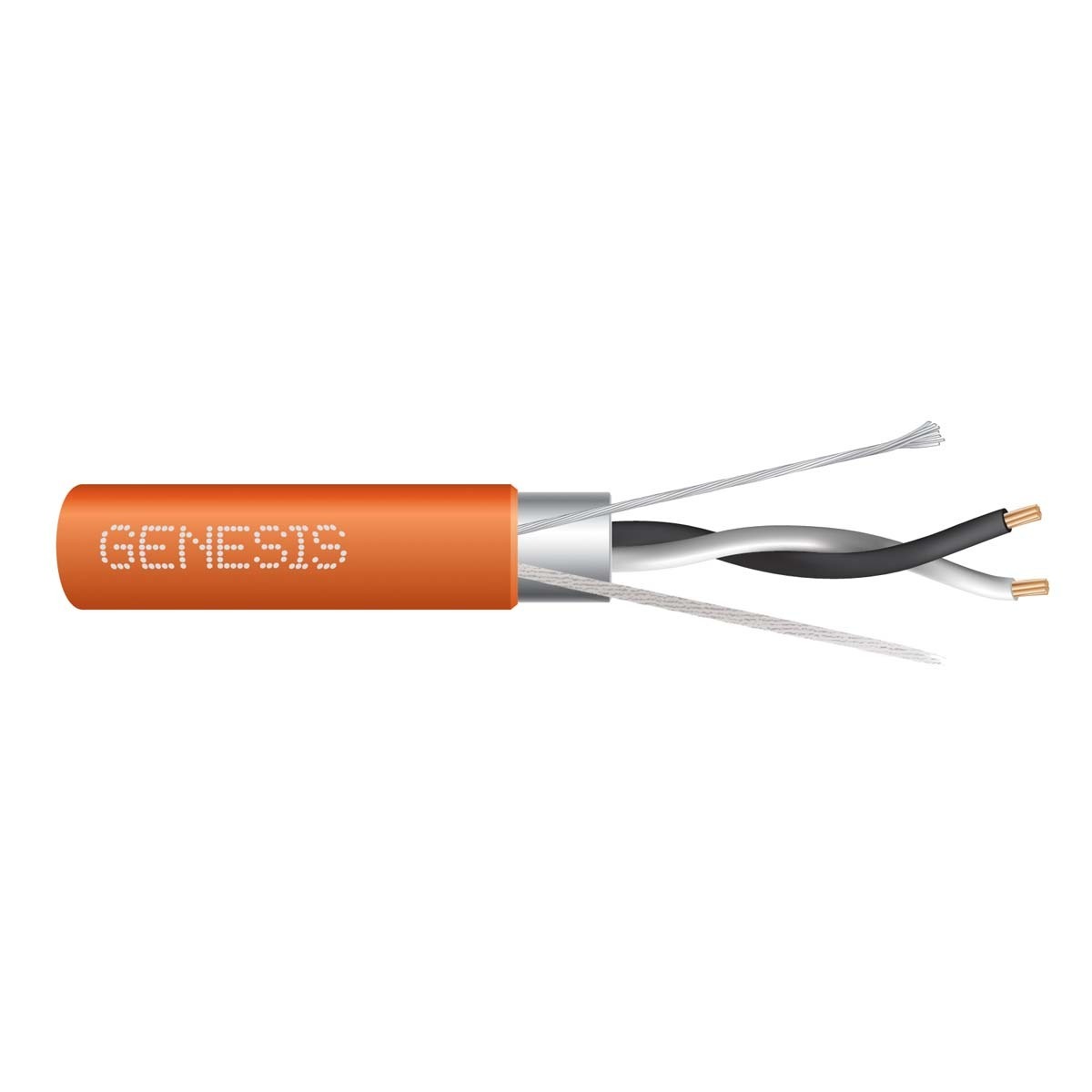

Construction
Genesis® Plenum Rated RS-485 Shielded Cable features the following quality and convenience characteristics:
- Bare Copper or Tinned Copper conductors for excellent signal transmission and low voltage drop.
- FEP insulation.
- Foil shield over all conductors.
- Plenum PVC jacket.
- Durable rip cord for efficient jacket stripping and removal.
- Countdown® Length Markings for easy tracking of usage and remaining cable.
- Rated for 300 Volts
- Rated for -20 °C to 75 °C.
