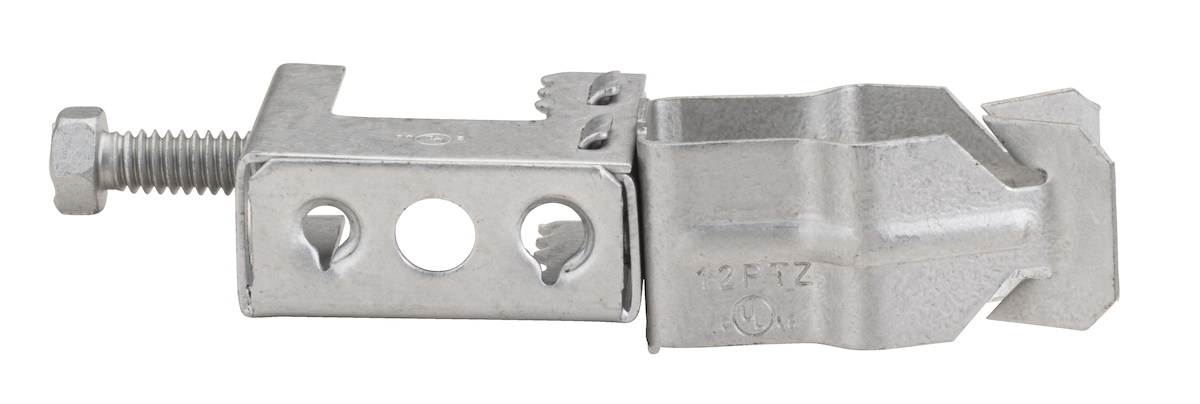

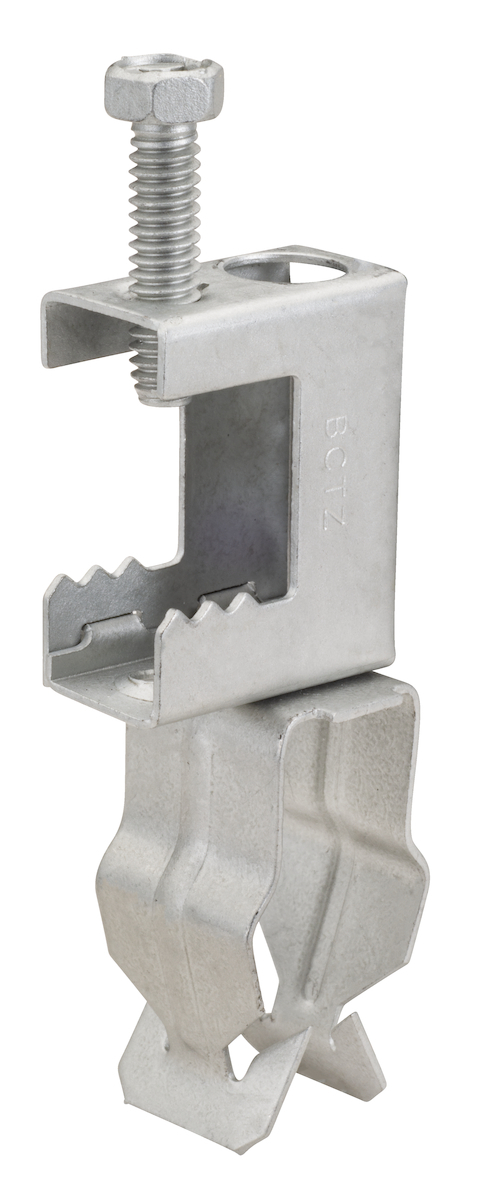

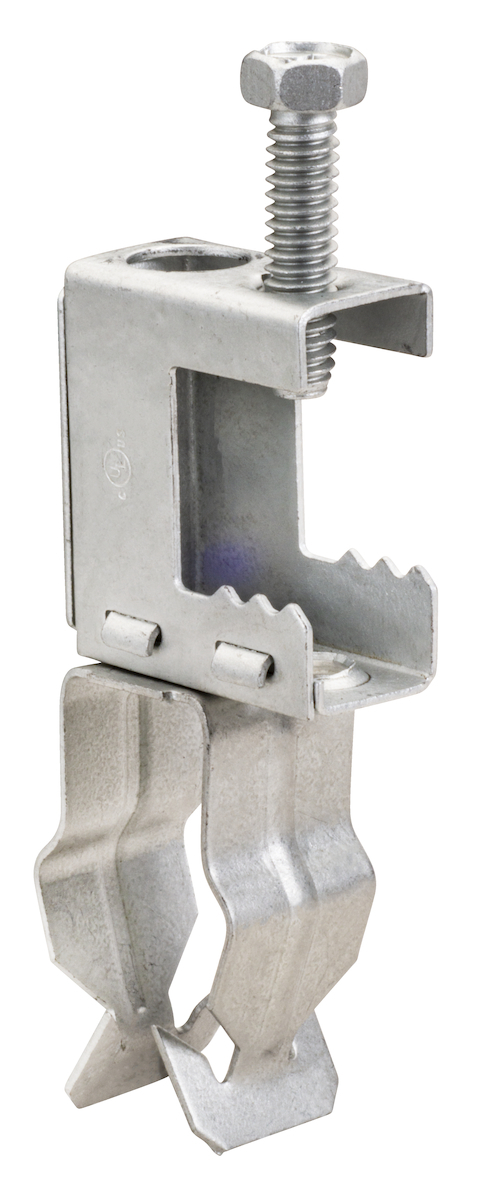

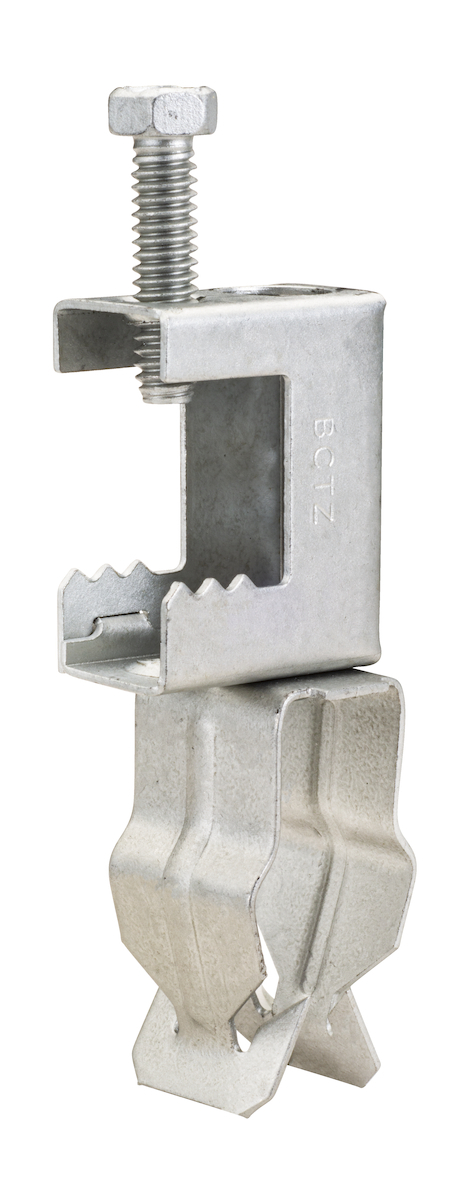

1/2� CONDUIT TO BEAM CLAMP- 100PK

Southwire #: BC8PTZ Model #: BC8PTZ

Push-in conduit hanger/beam clamp assemblies are used when EMT or Rigid conduits must be supported below a structural beam.

Where to Buy

Download Category Specifications

Hanging and Supports

Riveted conduit hanger rotates 360 degrees to accommodate various directions of conduit
Light-duty beam clamp provides a 25 lbs. static load capacity
Additional 10-24 and 1/4"-20 mounting holes on beam clamp

UPC # 751338043985 751338043985

There are no downloadable resources for this product.
