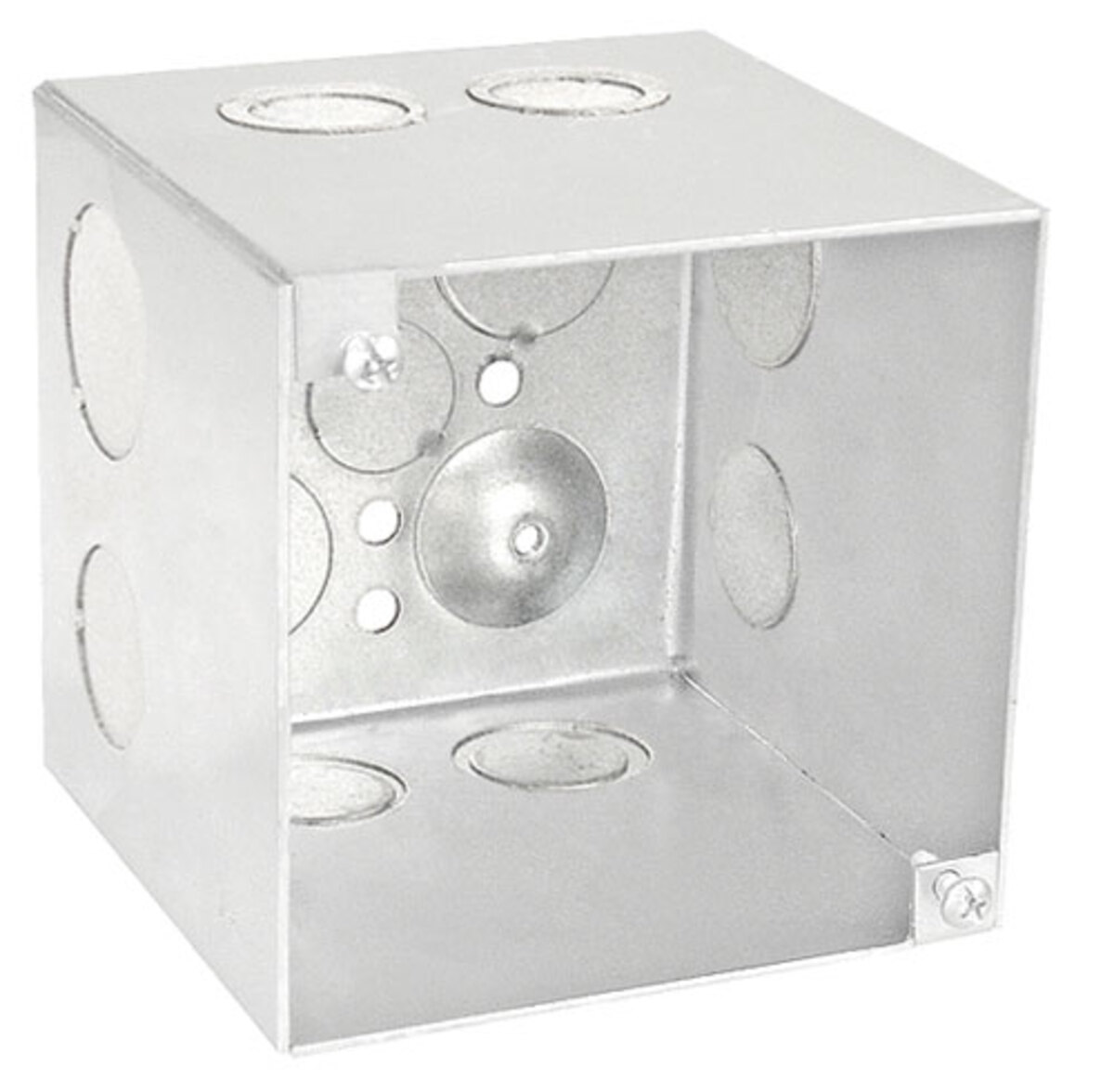

4" SQUARE BOXES, 4" DEEP - WELDED W/CONDUIT KO'S
Southwire #: 52191-S
Model #: 52191-S
4 SQ JUNCT BX 4 IN
Download Category Specifications
Excel Table
Register Product
Register Product
Features & Benefits
- 4" deep boxes allows for additional wiring capacity
- Combination knockouts allow for greater wiring flexibility
- Raised Ground
- Combination Phillips/Slotted screw heads.
- UL, RoHS Compliant
Specifications
| Model # | 52191-S 52191-S | |
| UPC # | 785592981813 785592981813 | |
| Product Height | 4.0 10.16 | inch cm |
| Product Width | 4.0 10.16 | inch cm |
| Product Weight | 1.398 0.63 | lbs kg |
| Material | Galvanized Steel Galvanized Steel | |
| Cubic Capacity | 56.0 (917.7) 56.0 (917.7) | |
| Standard Package | 25 25 | |
| Bottom Knockouts | (2) 1/2", (2) 3/4" (2) 1/2", (2) 3/4" | |
| Side Knockouts | (4) 1/2" - 3/4", (2) 1/2", (2) 3/4" (4) 1/2" - 3/4", (2) 1/2", (2) 3/4" | |
| Color | Silver Silver |
