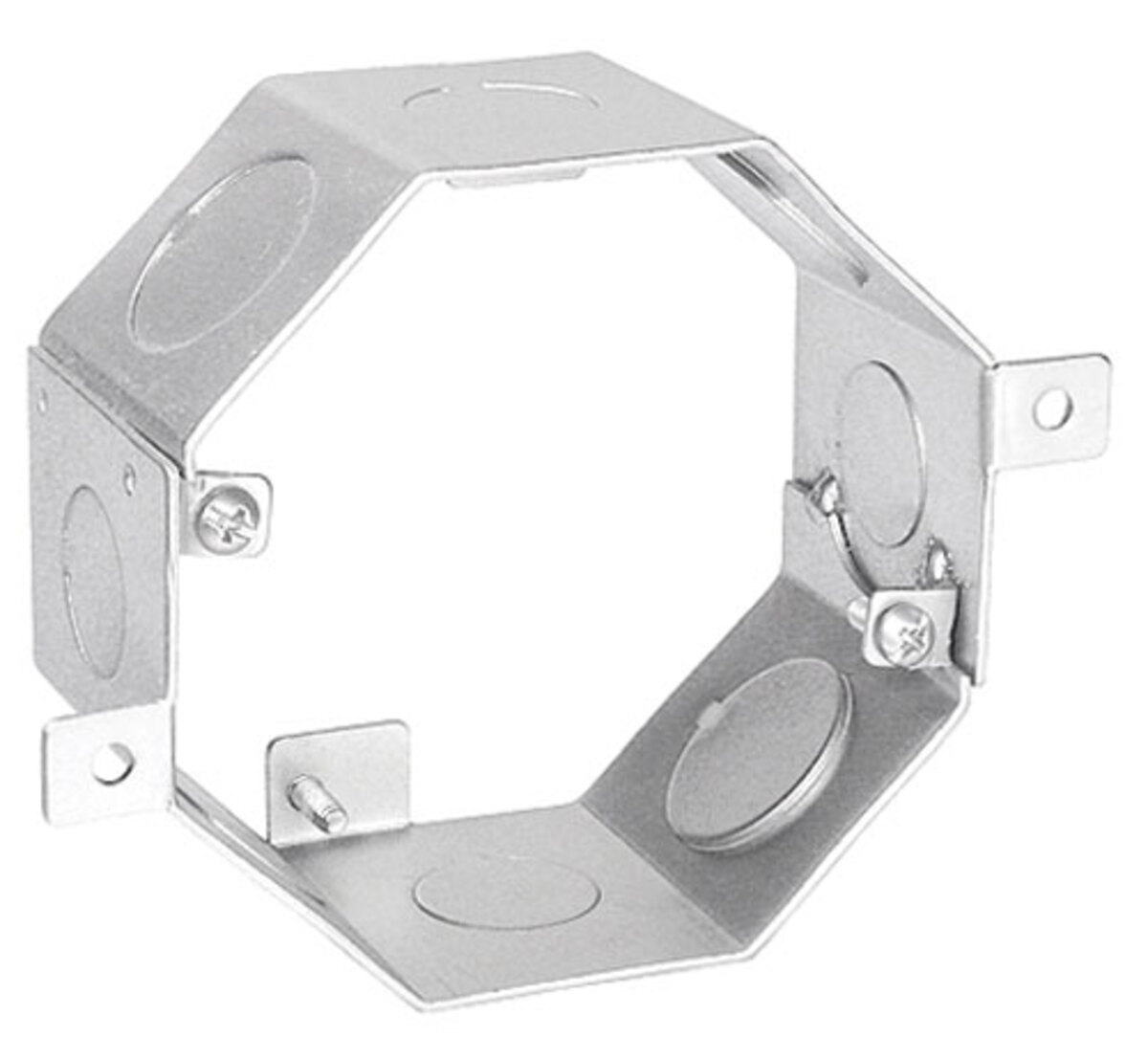

Octagon Concrete Box, 2" Deep - Welded W/ Conduit KO's
Southwire #: OCR-200
Model #: OCR-200
OCTAGON CONCRETE BX 2IN
Register Product
Register Product
Features & Benefits
- Extra long external mounting tabs allow easy installation by nailing or screwing the boxes to wooden or steel concrete forms
- Knockouts are sealed against box surface to prevent concrete slurry and water from entering the box
- The top covers are removable allowing any before-pour work (sold separately)
- UL, RoHS Compliant
Specifications
| Model # | OCR-200 OCR-200 | |
| UPC # | 785592408242 785592408242 | |
| Product Height | 2.0 5.08 | inch cm |
| Product Width | 4.0 10.16 | inch cm |
| Product Weight | 1.62 0.73 | lbs kg |
| Material | Galvanized Steel Galvanized Steel | |
| Cubic Capacity | 24.5 (401.4) 24.5 (401.4) | |
| Standard Package | 50 50 | |
| Bottom Knockouts | (3) 1/2", (2) 3/4" (3) 1/2", (2) 3/4" | |
| Side Knockouts | (4) 1/2", (4) 3/4" (4) 1/2", (4) 3/4" | |
| Color | Silver Silver |
Resources
There are no downloadable resources for this product.
