SPEC: 26141
HVTECK CU 3/C 90NLEPR TS PVC AIA PVC 5kV 100% CSA
3 Conductor, 90 Mils No Lead Ethylene Propylene Rubber (NL-EPR), 100% Insulation Level, Tape Shield, Polyvinyl Chloride (PVC) Inner Jacket, Aluminum Interlocked Armour (AIA), Polyvinyl Chloride (PVC) Jacket
Application & Features
Southwire's 5kV HVTECK is a CSA armoured cable for industrial and commercial medium voltage applications. Rated FT4, -40°C, Hazardous Locations (HL). These cables are capable of operating continuously at the conductor temperature not in excess of 105°C for normal operation, 140°C for emergency overload, and 250°C for short circuit conditions. Rated for 1000 lbs /FT maximum sidewall pressure. These cables feature sunlight and moisture resistance, exceptional corona resistance, resistance to most chemical soils and acids and are flame retardant.
Specifications
Select a set of products below for more information:
| Cond. Size | Cond. Strands | Diameter Over Conductor (in) (cm) | Diameter Over Insulation (in) (cm) | Inner Layer Thickness (mils) (mm) | Diameter Over Shield (in) (cm) | Inner Jacket Thickness (mils) (mm) | Diameter Over Armor (in) (cm) | Outer Layer Thickness (mils) (mm) | Approx. OD (in) (cm) | Approx. Weight (lbs/1000') (kgs/km) | Max Pull Tension (lbs) (kg) | Min. Bend Radius (in) (cm) | |
| More Options |
2 AWG
2 AWG
|
7
7
|
0.282
0.72
|
0.501
1.27
|
90
2.29
|
0.561
1.42
|
80
2.03
|
1.753
4.45
|
60
1.52
|
1.873
4.76
|
1923
2862
|
1592
722.12
|
13.1
33.27
|
| More Options |
1/0 AWG
1/0 AWG
|
19
19
|
0.361
0.92
|
0.572
1.45
|
90
2.29
|
0.632
1.61
|
80
2.03
|
1.918
4.87
|
60
1.52
|
2.038
5.18
|
2558
3807
|
2534
1149.40
|
14.3
36.32
|
| More Options |
2/0 AWG
2/0 AWG
|
19
19
|
0.405
1.03
|
0.624
1.58
|
90
2.29
|
0.684
1.74
|
110
2.79
|
2.091
5.31
|
60
1.52
|
2.211
5.62
|
3050
4539
|
3194
1448.77
|
15.5
39.37
|
| More Options |
4/0 AWG
4/0 AWG
|
19
19
|
0.512
1.30
|
0.716
1.82
|
90
2.29
|
0.776
1.97
|
110
2.79
|
2.289
5.81
|
75
1.91
|
2.439
6.20
|
4121
6133
|
5078
2303.34
|
17.1
43.43
|
| More Options |
250 KCMIL
250 KCMIL
|
37
37
|
0.558
1.42
|
0.768
1.95
|
90
2.29
|
0.828
2.10
|
110
2.79
|
2.402
6.10
|
75
1.91
|
2.552
6.48
|
4663
6939
|
6000
2721.55
|
17.9
45.47
|
| More Options |
350 KCMIL
350 KCMIL
|
37
37
|
0.661
1.68
|
0.867
2.20
|
90
2.29
|
0.927
2.35
|
110
2.79
|
2.616
6.64
|
75
1.91
|
2.766
7.03
|
5856
8715
|
8400
3810.17
|
19.4
49.28
|
| More Options |
500 KCMIL
500 KCMIL
|
37
37
|
0.789
2.00
|
0.992
2.52
|
90
2.29
|
1.052
2.67
|
110
2.79
|
2.886
7.33
|
75
1.91
|
3.036
7.71
|
7653
11389
|
12000
5443.10
|
21.3
54.10
|
1 Comply with ICEA S-93-639 Appendix C for jacket thickness determination
^ Yellow outer jacket
| Cond. Size | DC Resistance at 25C (ohms/1000') (ohms/km) | AC Resistance at 75C (ohms/1000') (ohms/km) | Capacitive Reactance (ohms/1000') (ohms/km) | Inductive Reactance (ohms/1000') (ohms/km) | Zero Sequence Impedance (ohms/1000') (ohms/1000') | Positive Sequence Impedance (ohms/1000') (ohms/1000') | Shield Short Circuit Current 6 Cycles | Allowable Ampacity Directly Buried 90C | Allowable Ampacity In Air 90C | |
| More Options |
2 AWG
2 AWG
|
0.162
0.24
|
0.204
0.30
|
0.026
0.04
|
0.038
0.06
|
0.569 + j0.543
0.569 + j0.543
|
0.204 + j0.039
0.204 + j0.039
|
1766
1766
|
201
201
|
172
172
|
| More Options |
1/0 AWG
1/0 AWG
|
0.102
0.15
|
0.128
0.19
|
0.021
0.03
|
0.035
0.05
|
0.500 + j0.495
0.500 + j0.495
|
0.128 + j0.036
0.128 + j0.036
|
2010
2010
|
257
257
|
225
225
|
| More Options |
2/0 AWG
2/0 AWG
|
0.081
0.12
|
0.102
0.15
|
0.020
0.03
|
0.034
0.05
|
0.476 + j0.471
0.476 + j0.471
|
0.102 + j0.035
0.102 + j0.035
|
2147
2147
|
292
292
|
260
260
|
| More Options |
4/0 AWG
4/0 AWG
|
0.051
0.08
|
0.065
0.10
|
0.015
0.02
|
0.032
0.05
|
0.440 + j0.419
0.440 + j0.419
|
0.065 + j0.032
0.065 + j0.032
|
2478
2478
|
372
372
|
342
342
|
| More Options |
250 KCMIL
250 KCMIL
|
0.043
0.06
|
0.056
0.08
|
0.014
0.02
|
0.032
0.05
|
0.430 + j0.395
0.430 + j0.395
|
0.056 + j0.032
0.056 + j0.032
|
2645
2645
|
410
410
|
376
376
|
| More Options |
350 KCMIL
350 KCMIL
|
0.031
0.05
|
0.041
0.06
|
0.012
0.02
|
0.030
0.04
|
0.410 + j0.354
0.410 + j0.354
|
0.041 + j0.031
0.041 + j0.031
|
2965
2965
|
487
487
|
460
460
|
| More Options |
500 KCMIL
500 KCMIL
|
0.022
0.03
|
0.030
0.04
|
0.010
0.01
|
0.029
0.04
|
0.389 + j0.310
0.389 + j0.310
|
0.030 + j0.029
0.030 + j0.029
|
3361
3361
|
573
573
|
556
556
|
* Inductive impedance is based on non-ferrous conduit with one diameter spacing center-to-center.
* Calculations are based on 5 mil 25 % over lapping copper tape shield / Conductor temperature of 90°C / Shield temperature of 45°C / Earth resistivity of 100 ohms-meter
* Ampacities are based on Table D17N of the Canadian Electrical Code Part I (40°C Ambient Air Temperature, indoor installation)
* Ampacities are based on Table D17E of the Canadian Electrical Code Part I
* CEC ampacities are based on:
3/C in air copper and aluminum: D17N
3/C direct buried copper and aluminum: D17E
Standards & References
- ASTM B3 Soft or Annealed Copper Wire
- ASTM B8 Concentric-Lay-Stranded Copper Conductors
- CSA C22.2 No. 174 Cables in Hazardous Locations
- CSA C22.2 No. 2556 & No. 0.3 Wire and Cable Test Methods
- CSA C68.10 Shielded Power Cables for Commercial and Industrial Applications - 5 to 46 KV
- CSA C68.3 Shielded & Concentric Neutral Power Cable - 5 to 46 kV
- CSA LTGG [-40°C] - as per C68.10 - for Cold Bend and Impact rating
- CSA HL - for Hazardous Locations rating
- CSA SUN RES - for Sunlight Resistant rating
- ICEA S-93-639 (NEMA WC 74) 5-46 KV Shielded Power Cable
- ICEA T-29-520 Flame Test (210,000 BTU/Hr)
- IEEE 383 Flame Test (70,000 btu)
- IEEE 1202 FT4 Flame Test (70,000) BTU/hr Vertical Tray Test
- FT1 Flame Test (1,706 BTU/Hr nominal - Vertical Wire Flame Test)
- AEIC CS-8 Specification for extruded dielectric shielded power cables rated for 5 through 46KV (Qualification Test Requirements)

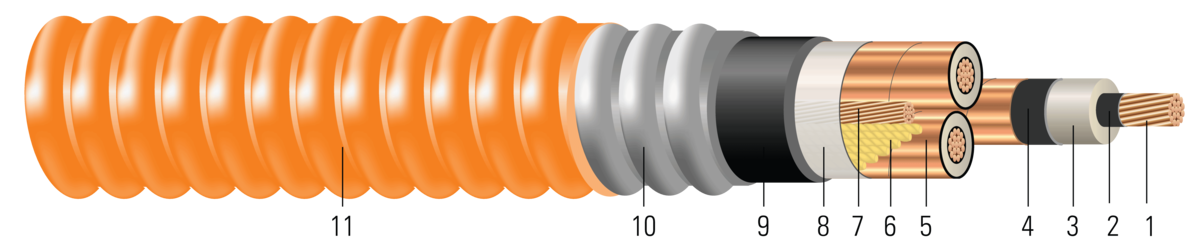

Construction
- Conductor: Class B compressed stranded bare copper per ASTM B3 and ASTM B8
- Conductor Shield: Semi-conducting cross-linked copolymer
- Insulation: 90 Mils No Lead Ethylene Propylene Rubber (NL-EPR) 100% insulation level
- Insulation Shield: Strippable semi-conducting cross-linked copolymer
- Copper Tape Shield: Helically wrapped 5 mil copper tape with 25% overlap
- Filler: Interstices filled with non-hydroscoping/non-wicking fillers
- Grounding Conductor: Class B compressed stranded bare copper ground per ASTM B3 and ASTM B8
- Binder: Polypropylene tape
- Inner Jacket: PVC inner jacket
- Armour: Aluminum Interlocked Armour (AIA)
- Overall Jacket: Orange Polyvinyl Chloride (PVC) Jacket
