SPEC: 10080

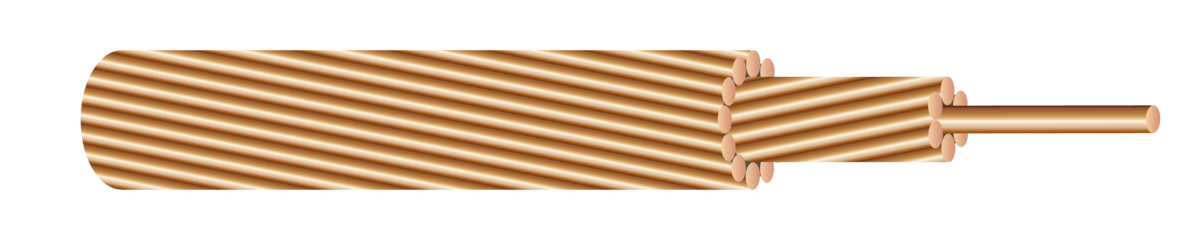

Bare Copper Solid, Compressed Class B and C
Application & Features
Specifications
Select a set of products below for more information:
| Cond. Size | Strand Class | Cond. Strands | Cond. Cmil (cmils) (mm) | Approx. OD (in) (cm) | Approx. Weight (lbs/1000') (kgs/km) | DC Resistance at 25C (ohms/1000') (ohms/km) | |
| More Options |
18 AWG
18 AWG
|
B
B
|
7
7
|
1620.0
1.05
|
0.045
0.11
|
4
6
|
6.669
9.92
|
| More Options |
14 MILS
14 MILS
|
Solid
Solid
|
Solid
Solid
|
4110.0
2.65
|
0.064
0.16
|
12
18
|
2.631
3.92
|
| More Options |
12 MILS
12 MILS
|
Solid
Solid
|
Solid
Solid
|
6530.0
4.21
|
0.080
0.20
|
20
30
|
1.662
2.47
|
| More Options |
10 MILS
10 MILS
|
Solid
Solid
|
Solid
Solid
|
10380.0
6.70
|
0.101
0.26
|
32
48
|
1.040
1.55
|
| More Options |
8 MILS
8 MILS
|
Solid
Solid
|
Solid
Solid
|
16510.0
10.65
|
0.128
0.33
|
50
74
|
0.653
0.97
|
| More Options |
8 AWG
8 AWG
|
B
B
|
7
7
|
16510.0
10.65
|
0.141
0.36
|
50
74
|
0.653
0.97
|
| More Options |
6 MILS
6 MILS
|
Solid
Solid
|
Solid
Solid
|
26240.0
16.93
|
0.162
0.41
|
81
121
|
0.411
0.61
|
| More Options |
6 AWG
6 AWG
|
B
B
|
7
7
|
26240.0
16.93
|
0.177
0.45
|
81
121
|
0.411
0.61
|
| More Options |
4 MILS
4 MILS
|
Solid
Solid
|
Solid
Solid
|
41740.0
26.93
|
0.204
0.52
|
128
190
|
0.258
0.38
|
| More Options |
4 AWG
4 AWG
|
B
B
|
7
7
|
41740.0
26.93
|
0.225
0.57
|
128
190
|
0.258
0.38
|
| More Options |
3 AWG
3 AWG
|
B
B
|
7
7
|
52620.0
33.95
|
0.260
0.66
|
162
241
|
0.205
0.31
|
| More Options |
2 MILS
2 MILS
|
Solid
Solid
|
Solid
Solid
|
66360.0
42.81
|
0.257
0.65
|
204
304
|
0.162
0.24
|
| More Options |
2 AWG
2 AWG
|
B
B
|
7
7
|
66360.0
42.81
|
0.282
0.72
|
204
304
|
0.162
0.24
|
| More Options |
1/0 AWG
1/0 AWG
|
A
A
|
7
7
|
105600.0
68.13
|
0.368
0.93
|
326
485
|
0.102
0.15
|
| More Options |
1/0 AWG
1/0 AWG
|
B
B
|
19
19
|
105600.0
68.13
|
0.361
0.92
|
325
484
|
0.102
0.15
|
| More Options |
2/0 AWG
2/0 AWG
|
A
A
|
7
7
|
133100.0
85.87
|
0.413
1.05
|
410
610
|
0.081
0.12
|
| More Options |
2/0 AWG
2/0 AWG
|
B
B
|
19
19
|
133100.0
85.87
|
0.405
1.03
|
410
610
|
0.081
0.12
|
| More Options |
2/0 AWG
2/0 AWG
|
C
C
|
37
37
|
133100.0
85.87
|
0.420
1.07
|
410
610
|
0.081
0.12
|
| More Options |
3/0 AWG
3/0 AWG
|
B
B
|
19
19
|
167800.0
108.26
|
0.456
1.16
|
518
771
|
0.064
0.10
|
| More Options |
4/0 AWG
4/0 AWG
|
A
A
|
7
7
|
211600.0
136.52
|
0.521
1.32
|
653
972
|
0.051
0.08
|
| More Options |
4/0 AWG
4/0 AWG
|
B
B
|
19
19
|
211600.0
136.52
|
0.512
1.30
|
653
972
|
0.051
0.08
|
| More Options |
250 KCMIL
250 KCMIL
|
A
A
|
19
19
|
250000.0
161.29
|
0.573
1.46
|
771
1147
|
0.043
0.06
|
| More Options |
350 KCMIL
350 KCMIL
|
A
A
|
19
19
|
350000.0
225.81
|
0.678
1.72
|
1080
1607
|
0.031
0.05
|
| More Options |
500 KCMIL
500 KCMIL
|
B
B
|
37
37
|
500000.0
322.58
|
0.813
2.07
|
1544
2298
|
0.022
0.03
|
| More Options |
750 KCMIL
750 KCMIL
|
B
B
|
61
61
|
750000.0
483.87
|
0.968
2.46
|
2316
3447
|
0.014
0.02
|
| More Options |
1000 KCMIL
1000 KCMIL
|
B
B
|
61
61
|
1000000.0
645.16
|
1.117
2.84
|
3088
4595
|
0.011
0.02
|
| More Options |
16 MILS
16 MILS
|
Solid
Solid
|
Solid
Solid
|
2580.0
1.66
|
0.050
0.13
|
7
10
|
4.181
6.22
|
| More Options |
12 MILS
12 MILS
|
Solid
Solid
|
Solid
Solid
|
6530.0
4.21
|
0.080
0.20
|
20
30
|
1.662
2.47
|
| More Options |
8 MILS
8 MILS
|
Solid
Solid
|
Solid
Solid
|
16510.0
10.65
|
0.128
0.33
|
50
74
|
0.653
0.97
|
| More Options |
6 MILS
6 MILS
|
Solid
Solid
|
Solid
Solid
|
26240.0
16.93
|
0.162
0.41
|
81
121
|
0.411
0.61
|
| More Options |
4 MILS
4 MILS
|
Solid
Solid
|
Solid
Solid
|
41740.0
26.93
|
0.204
0.52
|
128
190
|
0.258
0.38
|
Standards & References
- ASTM B3 Soft or Annealed Copper Wire
- ASTM B8 Concentric-Lay-Stranded Copper Conductors
Construction
- Conductor: Bare copper solid or compressed class B or C per ASTM B3 and ASTM B8
