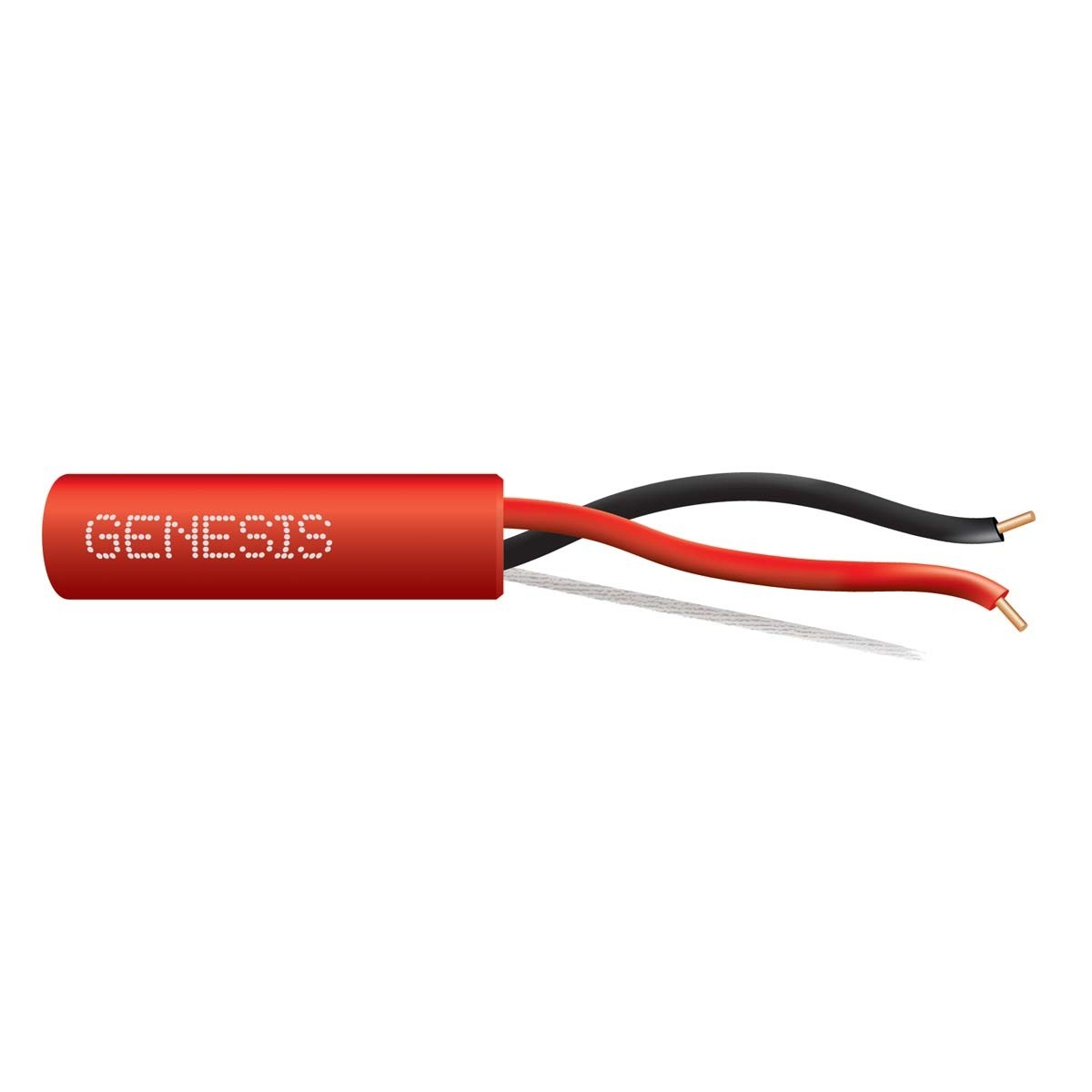

Fire Alarm Unshielded Cable, Plenum
Genesis Fire Alarm Cables ensure uninterrupted fire protection. Built to exceed the demands of rigorous fire safety codes and regulations, UL listed, and Made in the USA.
Download Category Specifications
Excel Table
Application
Genesis® Plenum Rated Unshielded Fire Alarm Cable is suitable for installation as follows:
- In fabricated ducts as described in NEC 300.22(B).
- In other spaces used for environmental air as described in NEC 300.22(C).
- In risers.
- Within buildings in other than air-handling spaces and risers.
Specifications
Select a set of products below for more information:
| Conductors | |||||||
| Size (AWG or kcmil) (mm2) | No. of Conductors | Stranding | No. of Strands | Shielding | Nominal Outside Diameter (mils) (mm) | Nominal Total Weight (lbs/1000') (kgs/km) | |
| 4511 |
16 AWG
16 AWG
|
2
2
|
Solid
Solid
|
|
Unshielded
Unshielded
|
|
23
34
|
| 4513 |
14 AWG
14 AWG
|
2
2
|
Solid
Solid
|
|
Unshielded
Unshielded
|
|
33
50
|
| 4514 |
14 AWG
14 AWG
|
4
4
|
Solid
Solid
|
|
Unshielded
Unshielded
|
|
62
93
|
| 4515 |
12 AWG
12 AWG
|
2
2
|
Solid
Solid
|
|
Unshielded
Unshielded
|
|
50
74
|
| 4523 |
16 AWG
16 AWG
|
2
2
|
Stranded
Stranded
|
|
Unshielded
Unshielded
|
|
23
35
|
| 4522 |
14 AWG
14 AWG
|
2
2
|
Stranded
Stranded
|
|
Unshielded
Unshielded
|
|
35
52
|
| 4527 |
14 AWG
14 AWG
|
4
4
|
Stranded
Stranded
|
|
Unshielded
Unshielded
|
|
65
97
|
| 4521 |
12 AWG
12 AWG
|
2
2
|
Stranded
Stranded
|
|
Unshielded
Unshielded
|
|
53
78
|
| 4526 |
16 AWG
16 AWG
|
4
4
|
Stranded
Stranded
|
|
Unshielded
Unshielded
|
|
42
63
|
| 4512 |
16 AWG
16 AWG
|
4
4
|
Solid
Solid
|
|
Unshielded
Unshielded
|
|
41
62
|
| 4506 |
18 AWG
18 AWG
|
2
2
|
Solid
Solid
|
|
Unshielded
Unshielded
|
|
15
22
|
| 4507 |
18 AWG
18 AWG
|
4
4
|
Solid
Solid
|
|
Unshielded
Unshielded
|
|
27
39
|
| 4508 |
18 AWG
18 AWG
|
6
6
|
Solid
Solid
|
|
Unshielded
Unshielded
|
|
38
57
|
Standards & References
Genesis® Plenum Rated Unshielded Fire Alarm Cable meets or exceeds the following:
- NFPA 262 - Plenum Rated
- CSA C22.2 No. 2556 - FT6 Rated
- UL 1424 - Cables for Power-Limited Fire-Alarm Circuits, Type FPLP
- UL 13 - Power-Limited Circuit Cables, Type CL3P
- REACH/RoHS Compliant
Construction
Genesis® Plenum Rated Unshielded Fire Alarm Cable features the following quality and convenience characteristics:
- Bare Copper conductors for excellent conductivity and low voltage drop.
- Low-Smoke PVC insulation.
- Plenum PVC jacket.
- Durable rip cord for efficient jacket stripping and removal.
- Countdown® Length Markings for easy tracking of usage and remaining cable.
- Rated for 300 Volts
- Rated for -20 °C to 75 °C.
