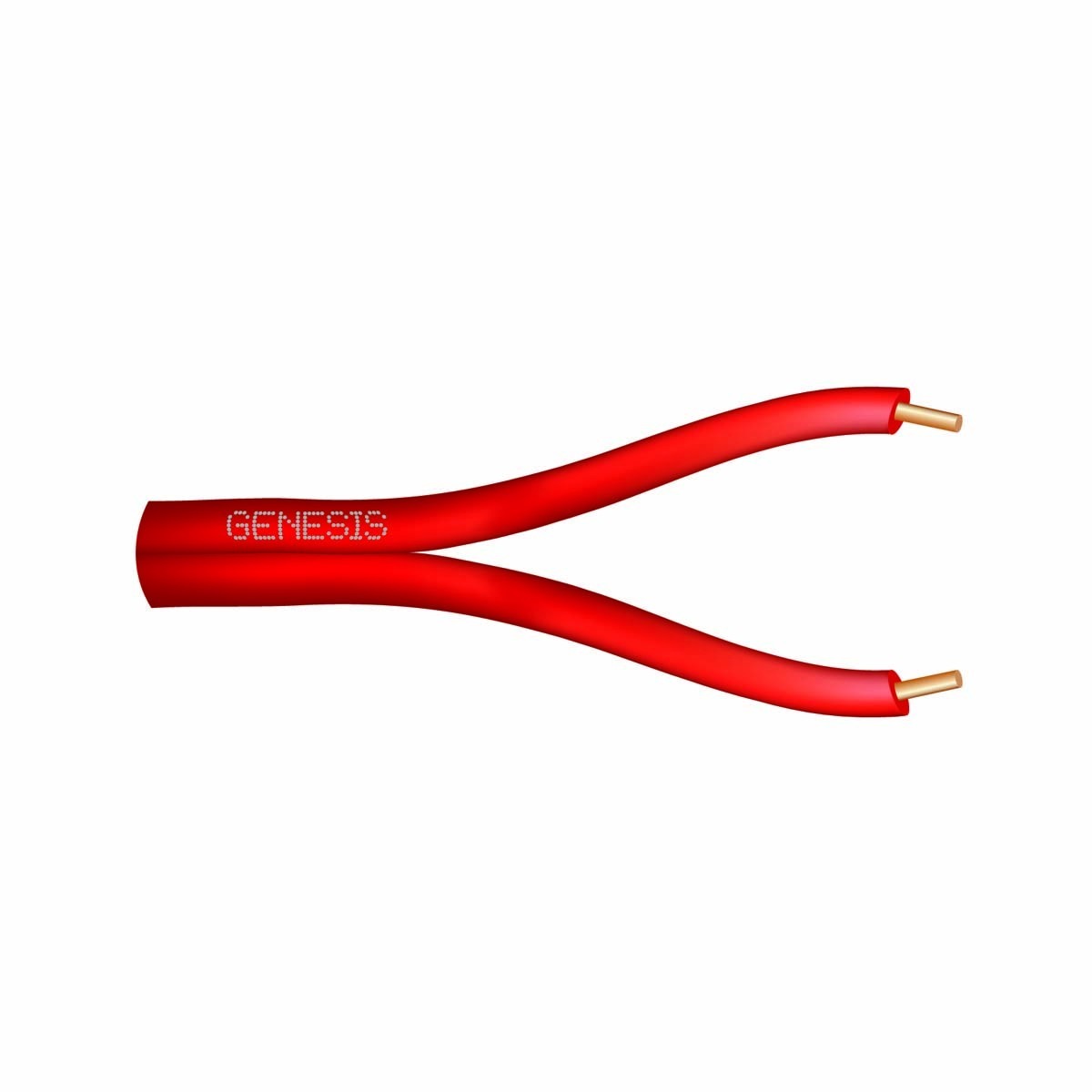

Fire Alarm Zip Cable, Riser
Genesis Fire Alarm Zip Cables install easily and more simply connect close-proximity applications. Two parallel conductors separate easily without the added bulk of an outer jacket, making Zip Cables the cost-effective choice.
Download Category Specifications
Excel Table
Application
Genesis® Riser Rated Fire Alarm Zip Cable is suitable for installation as follows:
- Installed in a metal raceway that complies with 300.22(B).
- Supported by solid bottom metal cable trays with solid metal covers.
- In risers.
- Within buildings in other than air-handling spaces and risers.
- Exposed to sunlight.
Specifications
Select a set of products below for more information:
| Conductors | |||||||
| Size (AWG or kcmil) (mm2) | No. of Conductors | Stranding | No. of Strands | Shielding | Nominal Outside Diameter (mils) (mm) | Nominal Total Weight (lbs/1000') (kgs/km) | |
| 4423 |
16 AWG
16 AWG
|
2
2
|
Solid
Solid
|
|
Unshielded
Unshielded
|
|
23
34
|
Standards & References
Genesis® Riser Rated Fire Alarm Zip Cable meets or exceeds the following:
- UL 1666 - Riser Rated
- CSA C22.2 No. 2556 - FT4 Rated
- UL 1424 - Cables for Power-Limited Fire-Alarm Circuits, Type FPLR
- UL 13 - Power-Limited Circuit Cables, Type CL3R
- Sunlight Resistant Rated
- REACH/RoHS Compliant
Construction
Genesis® Riser Rated Fire Alarm Zip Cable features the following quality and convenience characteristics:
- Bare Copper conductors for excellent conductivity and low voltage drop.
- PVC insulation.
- PVC jacket.
- Countdown® Length Markings for easy tracking of usage and remaining cable.
- Rated for 300 Volts
- Rated for -20 °C to 75 °C.
