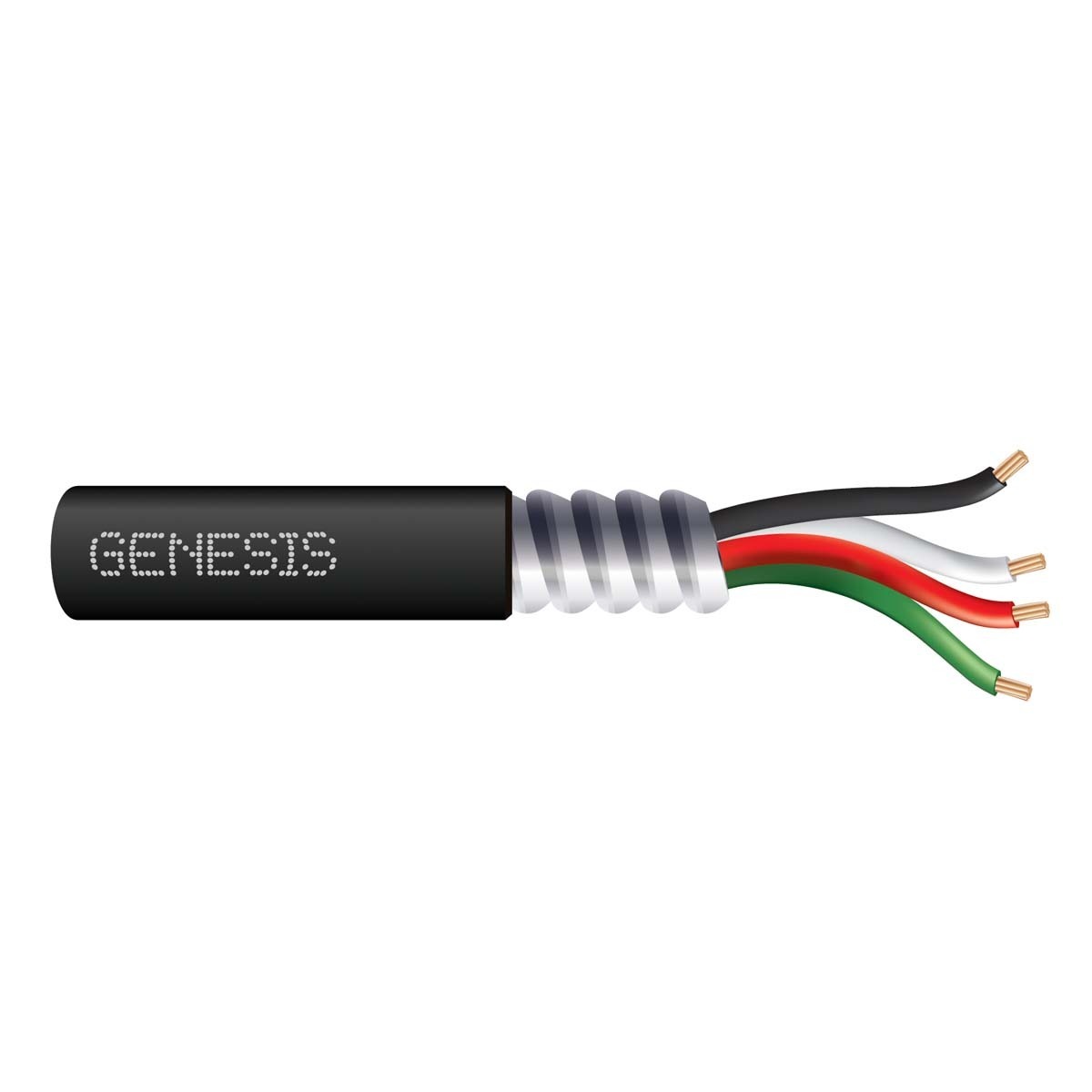

Mini Split Cable, Metal Clad
Genesis Metal Clad Mini Split Cables deliver versatility to accomodate indoor and outdoor installations with or without conduit. Their lightweight aluminum cladding, direct burial, and sunlight resistant features enable them to withstand harsh and wet environments.
Application & Features
Genesis® Metal Clad Mini Split Cable is suitable for installation as follows:
- Installed in-wall in one- and two-family dwelling units
- In burial applications.
Specifications
Select a set of products below for more information:
| Conductors | ||
| Size (AWG or kcmil) (mm2) | Shielding | |
| More Options |
14 AWG
14 AWG
|
Unshielded
Unshielded
|
Standards & References
Genesis® Metal Clad Mini Split Cable meets or exceeds the following:
- UL 1569 - Metal-Clad Cables
- Direct Burial Rated
- Sunlight Resistant Rated
- Oil Resistant I Rated
- REACH/RoHS Compliant
Construction
Genesis® Metal Clad Mini Split Cable features the following quality and convenience characteristics:
- Bare Copper conductors for excellent conductivity and low voltage drop.
- THHN insulation.
- Metal Cladded with PVC jacket.
- Rated for 600 Volts
- Rated for -20°C to 90°C Dry / 75°C Wet.
