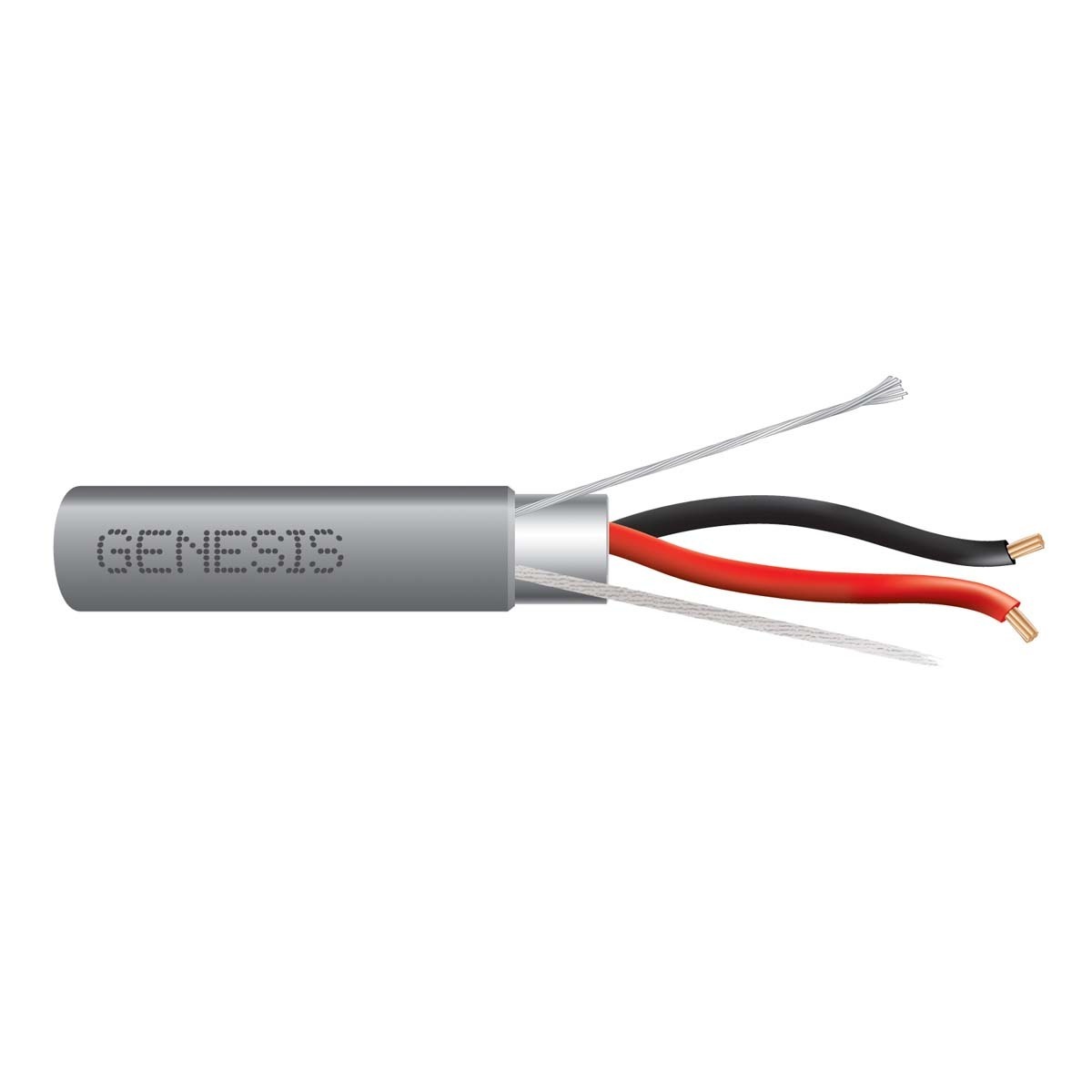

Multiconductor Shielded Cable, Riser
Genesis Shielded Multiconductor Cables offer a versatile solution for various applications. These shielded cables minimize electrical noise and interference to protect sensitive signals.
Download Category Specifications
Excel Table
Application
Genesis® Riser Rated Shielded Multiconductor Cable is suitable for installation as follows:
- Installed in a metal raceway that complies with 300.22(B).
- Supported by solid bottom metal cable trays with solid metal covers.
- In risers.
- Within buildings in other than air-handling spaces and risers.
- Exposed to sunlight.
Specifications
Select a set of products below for more information:
| Conductors | |||||||
| Size (AWG or kcmil) (mm2) | No. of Conductors | Stranding | No. of Strands | Shielding | Nominal Outside Diameter (mils) (mm) | Nominal Total Weight (lbs/1000') (kgs/km) | |
| 2221 |
16 AWG
16 AWG
|
2
2
|
Stranded
Stranded
|
|
Shielded
Shielded
|
|
26
38
|
| 2223 |
14 AWG
14 AWG
|
2
2
|
Stranded
Stranded
|
|
Shielded
Shielded
|
|
38
57
|
| 2224 |
14 AWG
14 AWG
|
4
4
|
Stranded
Stranded
|
|
Shielded
Shielded
|
|
67
100
|
| 2229 |
16 AWG
16 AWG
|
3
3
|
Stranded
Stranded
|
|
Shielded
Shielded
|
|
35
52
|
| 2222 |
16 AWG
16 AWG
|
4
4
|
Stranded
Stranded
|
|
Shielded
Shielded
|
|
45
68
|
| 2218 |
18 AWG
18 AWG
|
10
10
|
Stranded
Stranded
|
|
Shielded
Shielded
|
|
67
100
|
| 2219 |
18 AWG
18 AWG
|
12
12
|
Stranded
Stranded
|
|
Shielded
Shielded
|
|
79
118
|
| 2214 |
18 AWG
18 AWG
|
2
2
|
Stranded
Stranded
|
|
Shielded
Shielded
|
|
17
26
|
| 2228 |
18 AWG
18 AWG
|
3
3
|
Stranded
Stranded
|
|
Shielded
Shielded
|
|
23
34
|
| 2215 |
18 AWG
18 AWG
|
4
4
|
Stranded
Stranded
|
|
Shielded
Shielded
|
|
30
45
|
| 2216 |
18 AWG
18 AWG
|
6
6
|
Stranded
Stranded
|
|
Shielded
Shielded
|
|
42
63
|
| 2217 |
18 AWG
18 AWG
|
8
8
|
Stranded
Stranded
|
|
Shielded
Shielded
|
|
56
83
|
| 2208 |
22 AWG
22 AWG
|
10
10
|
Stranded
Stranded
|
|
Shielded
Shielded
|
|
33
50
|
| 2209 |
22 AWG
22 AWG
|
12
12
|
Stranded
Stranded
|
|
Shielded
Shielded
|
|
39
58
|
| 2202 |
22 AWG
22 AWG
|
2
2
|
Stranded
Stranded
|
|
Shielded
Shielded
|
|
10
15
|
| 2204 |
22 AWG
22 AWG
|
4
4
|
Stranded
Stranded
|
|
Shielded
Shielded
|
|
16
23
|
| 2206 |
22 AWG
22 AWG
|
6
6
|
Stranded
Stranded
|
|
Shielded
Shielded
|
|
21
32
|
| 2207 |
22 AWG
22 AWG
|
8
8
|
Stranded
Stranded
|
|
Shielded
Shielded
|
|
28
41
|
Standards & References
Genesis® Riser Rated Shielded Multiconductor Cable meets or exceeds the following:
- UL 1666 - Riser Rated
- CSA C22.2 No. 2556 - FT4 Rated
- UL 444 - Communication Cables, Type CMR (22 AWG - 16 AWG)
- UL 1424 - Cables for Power-Limited Fire-Alarm Circuits, Type FPLR
- UL 13 - Power-Limited Circuit Cables, Type CL3R
- Sunlight Resistant Rated
- REACH/RoHS Compliant
Construction
Genesis® Riser Rated Shielded Multiconductor Cable features the following quality and convenience characteristics:
- Bare Copper conductors for excellent conductivity and low voltage drop.
- Polypropylene insulation.
- Foil shield over all conductors.
- PVC jacket.
- Durable rip cord for efficient jacket stripping and removal.
- Countdown® Length Markings for easy tracking of usage and remaining cable.
- Rated for 300 Volts
- Rated for -20 °C to 75 °C.
