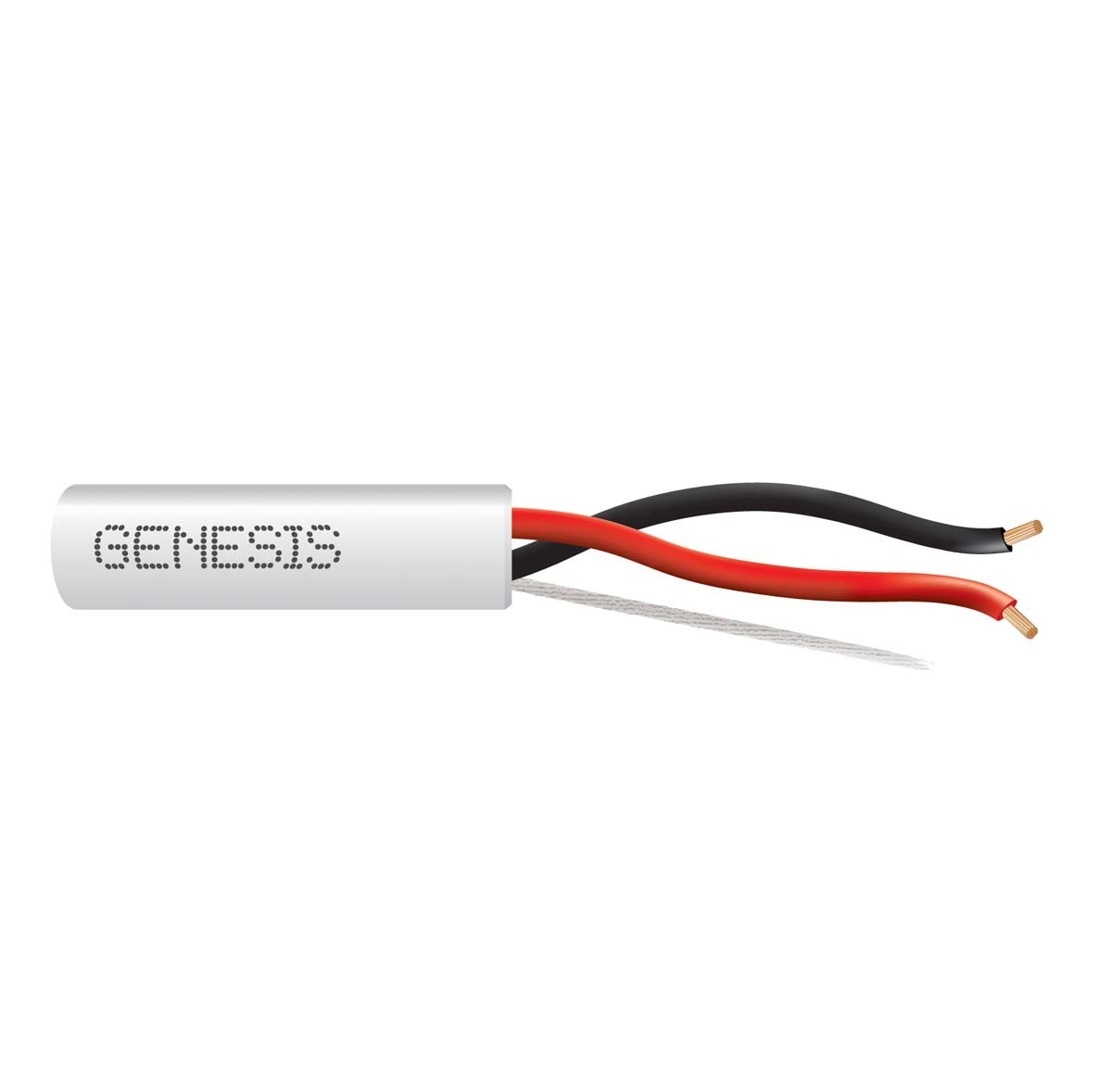

Multiconductor Unshielded Cable, Plenum
Genesis Unshielded Multiconductor Cables offer a versatile solution for various signal and limited-power transmission applications.
Download Category Specifications
Excel Table
Application
Genesis® Plenum Rated Unshielded Multiconductor Cable is suitable for installation as follows:
- In fabricated ducts as described in NEC 300.22(B).
- In other spaces used for environmental air as described in NEC 300.22(C).
- In risers.
- Within buildings in other than air-handling spaces and risers.
Specifications
Select a set of products below for more information:
| Conductors | |||||||
| Size (AWG or kcmil) (mm2) | No. of Conductors | Stranding | No. of Strands | Shielding | Nominal Outside Diameter (mils) (mm) | Nominal Total Weight (lbs/1000') (kgs/km) | |
| 3121 |
16 AWG
16 AWG
|
2
2
|
Stranded
Stranded
|
|
Unshielded
Unshielded
|
|
23
35
|
| 3123 |
14 AWG
14 AWG
|
2
2
|
Stranded
Stranded
|
|
Unshielded
Unshielded
|
|
35
52
|
| 3124 |
14 AWG
14 AWG
|
4
4
|
Stranded
Stranded
|
|
Unshielded
Unshielded
|
|
65
97
|
| 3125 |
12 AWG
12 AWG
|
2
2
|
Stranded
Stranded
|
|
Unshielded
Unshielded
|
|
53
78
|
| 3129 |
16 AWG
16 AWG
|
3
3
|
Stranded
Stranded
|
|
Unshielded
Unshielded
|
|
33
49
|
| 3122 |
16 AWG
16 AWG
|
4
4
|
Stranded
Stranded
|
|
Unshielded
Unshielded
|
|
42
63
|
| 3118 |
18 AWG
18 AWG
|
10
10
|
Stranded
Stranded
|
|
Unshielded
Unshielded
|
|
67
99
|
| 3114 |
18 AWG
18 AWG
|
2
2
|
Stranded
Stranded
|
|
Unshielded
Unshielded
|
|
16
24
|
| 3134 |
18 AWG
18 AWG
|
2
2
|
Solid
Solid
|
|
Unshielded
Unshielded
|
|
15
22
|
| 3126 |
18 AWG
18 AWG
|
3
3
|
Stranded
Stranded
|
|
Unshielded
Unshielded
|
|
22
33
|
| 3115 |
18 AWG
18 AWG
|
4
4
|
Stranded
Stranded
|
|
Unshielded
Unshielded
|
|
29
43
|
| 3116 |
18 AWG
18 AWG
|
6
6
|
Stranded
Stranded
|
|
Unshielded
Unshielded
|
|
41
62
|
| 3117 |
18 AWG
18 AWG
|
8
8
|
Stranded
Stranded
|
|
Unshielded
Unshielded
|
|
54
80
|
| 3108 |
22 AWG
22 AWG
|
10
10
|
Stranded
Stranded
|
|
Unshielded
Unshielded
|
|
33
50
|
| 3109 |
22 AWG
22 AWG
|
12
12
|
Stranded
Stranded
|
|
Unshielded
Unshielded
|
|
40
59
|
| 3102 |
22 AWG
22 AWG
|
2
2
|
Stranded
Stranded
|
|
Unshielded
Unshielded
|
|
9
13
|
| 3103 |
22 AWG
22 AWG
|
4
4
|
Solid
Solid
|
|
Unshielded
Unshielded
|
|
13
19
|
| 3104 |
22 AWG
22 AWG
|
4
4
|
Stranded
Stranded
|
|
Unshielded
Unshielded
|
|
15
22
|
| 3106 |
22 AWG
22 AWG
|
6
6
|
Stranded
Stranded
|
|
Unshielded
Unshielded
|
|
21
31
|
| 3107 |
22 AWG
22 AWG
|
8
8
|
Stranded
Stranded
|
|
Unshielded
Unshielded
|
|
27
41
|
Standards & References
Genesis® Plenum Rated Unshielded Multiconductor Cable meets or exceeds the following:
- NFPA 262 - Plenum Rated
- CSA C22.2 No. 2556 - FT6 Rated
- UL 444 - Communication Cables, Type CMP (22 AWG - 16 AWG)
- UL 1424 - Cables for Power-Limited Fire-Alarm Circuits, Type FPLP
- UL 13 - Power-Limited Circuit Cables, Type CL3P
- REACH/RoHS Compliant
Construction
Genesis® Plenum Rated Unshielded Multiconductor Cable features the following quality and convenience characteristics:
- Bare Copper conductors for excellent conductivity and low voltage drop.
- Low-Smoke PVC insulation.
- Plenum PVC jacket.
- Durable rip cord for efficient jacket stripping and removal.
- Countdown® Length Markings for easy tracking of usage and remaining cable. Speed Bag variations use sequential length markings.
- Rated for 300 Volts
- Rated for -20 °C to 75 °C.
