Low Voltage Dimming or Luminaire Cable
SOUTHWIRE PLENUM RATED DIMMING OR LUMINAIRE CABLE
Application
POWER LIMITED CABLE, 75C 300V PLENUM RATED FOR DIMMING, LUMIAIRE OR COMMERCIAL AUDIO, GENERAL PURPOSE SECURITY AND SOUND APPLICATIONS
Specifications
Select a set of products below for more information:
| Conductor | Ground Wire | ||||||||
| No. of Conductors | Size (AWG or kcmil) (mm2) | No. of Strands | Insulation Thickness (mils) (mm) | Size (AWG) | No. of Strands | Nom. OD (mils) (mm) | Nominal Total Weight (lbs/1000') (kgs/km) | Allowable Ampacity | |
| P41614 |
2
2
|
18 AWG
18 AWG
|
7
7
|
|
|
|
152
3.86
|
17
25
|
|
| P51641 |
2
2
|
16 AWG
16 AWG
|
7
7
|
5
0.13
|
|
|
178
4.52
|
24
36
|
|
Standards & References
CMP/CL3P/FPLP
- UL 444/NEC ARTICLE 800/CSA C22.2 by C(UL)
- NFPA 262/CSA FT6
- 75C/300V
- ROHS-2 COMPLIANT

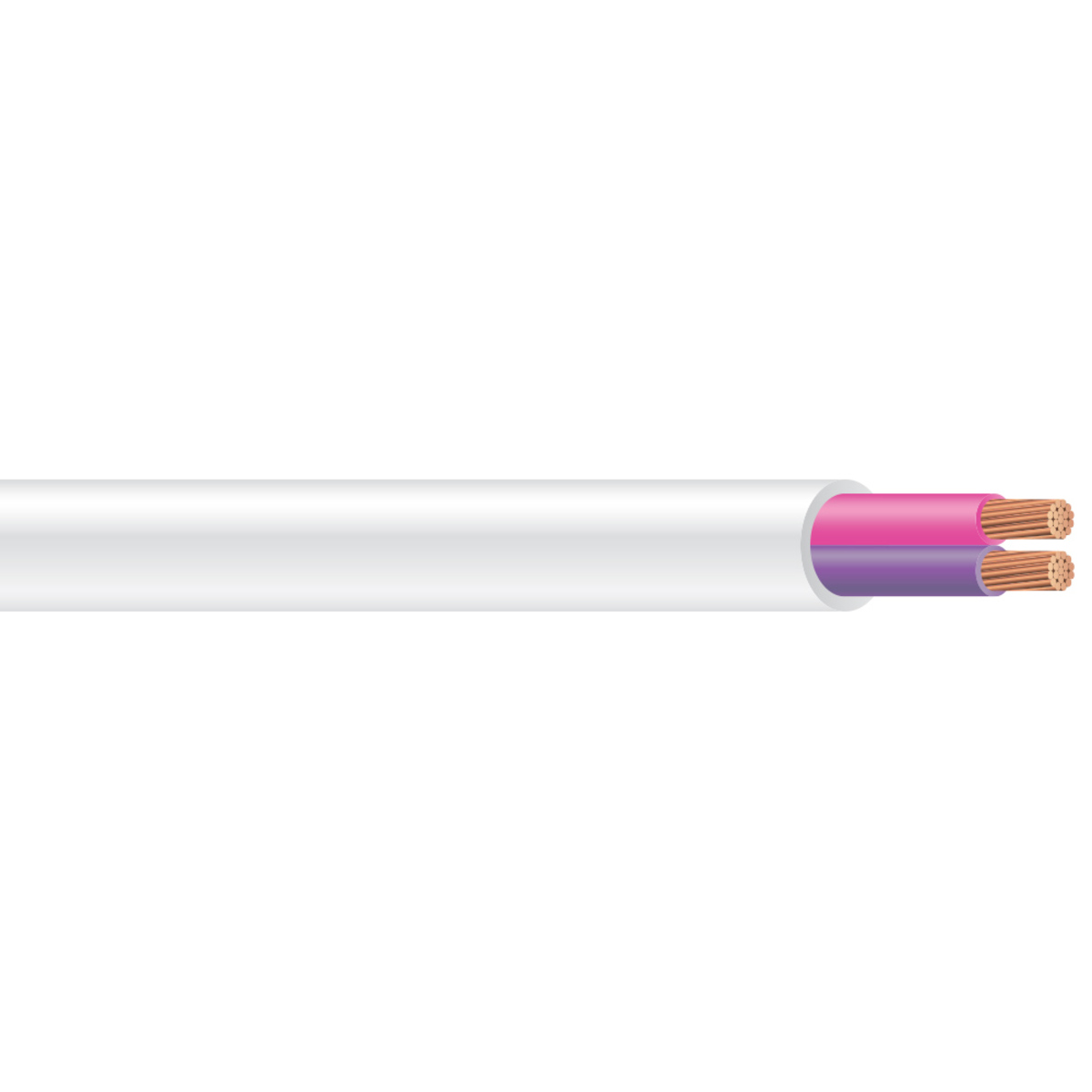

Construction
CONDUCTORS: 16 AWG 7 STRAND BC, 2 CONDUCTOR
- Jacket: LS-PVC
- Shield/Drain: UNSHIELDED
- Insulation: LS-PVC, COLORS: VIOLET, PINK
