Armorlite Riser MC™ Cable CU Feeder THHN/THWN-2 Conductors

2/0-4 CU THHN NOYA#3GG 600V AIA MC RISER

Southwire #: 64655299

2/0-4 AWG Copper THHN Insulated Singles. Bare Copper Grounding Conductor. UL Listed. 600 Volts. Binder Jacket for Continuous Conductor Support. Lightweight Aluminum Interlocked Armor.

Download Category Specifications

PDF Excel Table

Select Product Specifications

Construction

Conductor Color

Packaging

Application & Features

Suitable for use as follows:

Riser Cable, vertical applications
Branch, feeder and service power distribution in commercial, industrial, institutional, and multiresidential buildings.
Concealed or exposed installations.
Power, lighting, control, and signal circuits
Fished or embedded in plaster
Installation in cable tray and approved raceways.
Concealed or exposed installations
Places of Assembly per NEC 518.4 and theaters per NEC 520.5
Installation in cable tray and approved raceways
Under raised floors for information technology equipment conductors and cables per NEC 645.5(D) & 645.5(D)(2).

Specifications

No. of Conductors	5 5
Size (AWG or kcmil) (mm2)	3 AWG 3 AWG
No. of Strands	1 1
Insulation Thickness (mils) (mm)	50 1.27	mils mm
Nom. OD (mils) (mm)	1924 48.88	mils mm
Nominal Total Weight (lbs/1000') (kgs/km)	2627 3909	lbs/1000' kgs/km

Standards & References

Southwire's Armorlite® Type MC Cable - Multi-Circuit meets or exceeds the following requirements:

UL 83
UL 1569
UL 1685
UL Online Product Guide Info - Metal-Clad Cable (PJAZ) ( www.ul.com )
Federal Specification A-A59544 (formerly J-C-30B)
NFPA 70 (National Electrical Code), Article 330
Listed for use in UL 1, 2 and 3 Hour Through Penetration Firestop Systems
Jacketed & Non Jacketed will both pass " UL Test" & "FT4/IEEE 1202" (70,000 Btu/hr) Vertical Cable Tray Flame Test
REACH/RoHS-2 (Chemical Limit) Compliant

Construction

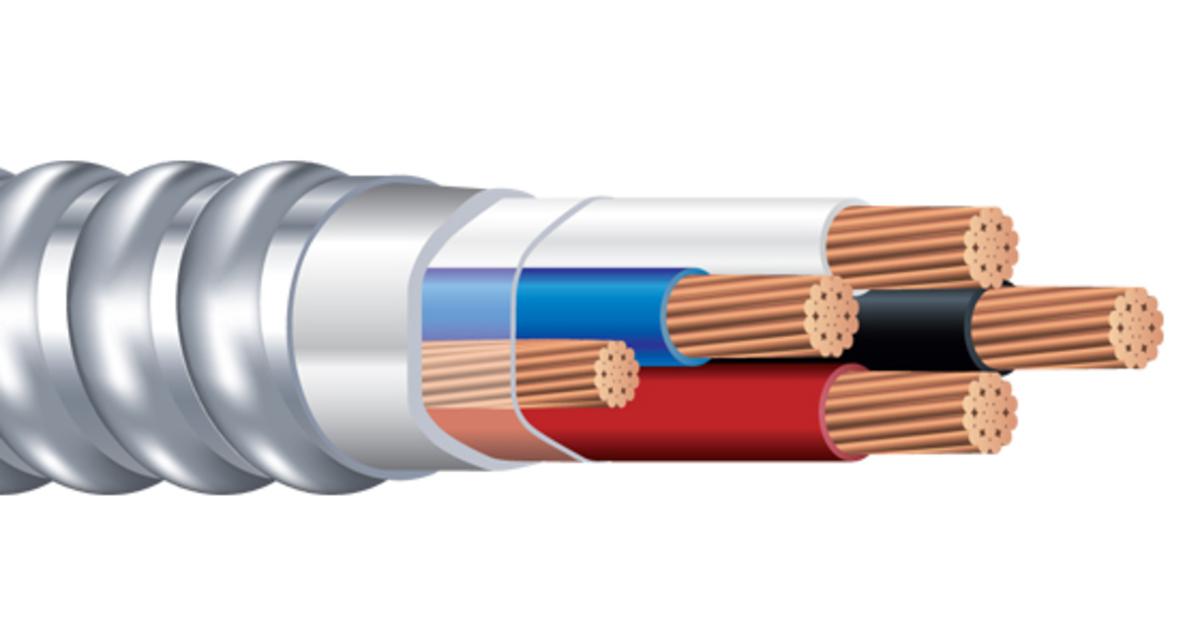

Southwire Copper Riser MC™ is constructed with Type THHN/THWN-2 conductors and a bare equipment grounding conductor. A binder tape is wrapped over the conductors and an integral polymeric binder jacket is applied under armor for continuous conductor support. Aluminum interlocking armor is applied snuggly over the assembly. An optional overall PVC Jacket can be applied over the armor.
