SPEC: 25051
4-7 2/C CU XLP BLACK/WHITE TECK90 1KV AIA BLACK PVC JKT 4921 FT
Southwire #: 58200504
Application & Features
For exposed or concealed wiring in wet or dry locations. For use in ventilated, non-ventilated and ladder type cable troughs and ventilated flexible cableway in wet, dry, or hazardous locations. Sunlight Resistant. Typical applications are for control. lighting and power circuits in: pulp and paper mills, steel mills, food processing plants, commercial centers, mines, generating stations, refineries, industrial plants and chemical plants. Rated for 1000 lbs./FT maximum sidewall pressure.
- -40°C - CSA Cold Bend and Impact Temperature
- -25°C - Min. Installation Temperature
- 90°C - Max. Continuous Operating Temperature
Specifications
| Cond. Size | 4 AWG 4 AWG | |
| Cond. Strands | 7 7 | |
| Diameter Over Conductor (in) (cm) | 0.225 0.57 | inch cm |
| Inner Layer Thickness (mils) (mm) | 60 1.52 | mils mm |
| Ground Size | 1x8 1x8 | |
| Inner Jacket Thickness (mils) (mm) | 85 2.16 | mils mm |
| Diameter Over Armor (in) (cm) | 1.144 2.91 | inch cm |
| Outer Layer Thickness (mils) (mm) | 55 1.40 | mils mm |
| Approx. OD (in) (cm) | 1.254 3.19 | inch cm |
| Approx. Weight (lbs/1000') (kgs/km) | 759 1130 | lbs/1000' kgs/km |
| Max Pull Tension (lbs) (kg) | 667 302.55 | lbs kg |
| Min. Bend Radius (in) (cm) | 8.7 22.10 | inch cm |
^ Colour Code: 2/C black, Red
Standards & References
- ASTM B3 Soft or Annealed Copper Wire
- ASTM B8 Concentric-Lay-Stranded Copper Conductors
- CSA C22.2 No. 174 Cables in Hazardous Locations
- CSA C22.2 No. 131 Type TECK 90 Cable
- CSA C22.2 No. 2556 & No. 0.3 Wire and Cable Test Methods
- CSA LTGG [-40°C] - as per C68.10 - for Cold Bend and Impact rating
- CSA HL - for Hazardous Locations rating
- CSA SUN RES - for Sunlight Resistant rating
- CSA AG14 - Acid Gas Compliance
- IEEE 383 Flame Test (70,000 btu)
- IEEE 1202 FT4 Flame Test (70,000) BTU/hr Vertical Tray Test

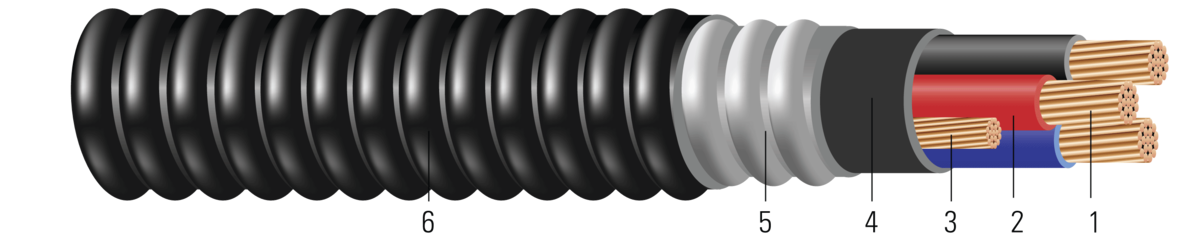

Construction
- Conductor: Class B stranded copper, compressed or compact, in accordance with ASTM B3 and B8.
- Insulation: Cross-Linked Polyethylene (XLPE), Colour Code: 2/C black, white; 3/C red, black, blue; 4/C red, black, blue, white; For cables larger than No. 2 AWG or more than 4/C, the insulation is black and numbered
- Grounding Conductors: Uninsulated Class B stranded grounding conductor
- Inner Jacket: Black Polyvinyl Chloride (PVC)
- Armor: Aluminum Interlocked Armour (AIA)
- Overall Jacket: Black PVC (optional colours available)
