SPEC: 26361
HVTECK AL 3/C 175NLEPR TS PVC AIA PVC 15kV 100% CSA
3 Conductor, 175 Mils No Lead Ethylene Propylene Rubber (NL-EPR), 100% Insulation Level, Tape Shield, Polyvinyl Chloride (PVC) Inner Jacket, Aluminum Interlocked Armour (AIA), Polyvinyl Chloride (PVC) Jacket
Application
Southwire's 15kV HVTECK is a CSA armoured cable for industrial and commercial medium voltage applications. Rated FT4, -40°C, Hazardous Locations (HL). These cables are capable of operating continuously at the conductor temperature not in excess of 105°C for normal operation, 140°C for emergency overload, and 250°C for short circuit conditions. Rated for 1000 lbs /FT maximum sidewall pressure. These cables feature sunlight and moisture resistance, exceptional corona resistance, resistance to most chemical soils and acids and are flame retardant.
Specifications
Select a set of products below for more information:
| Cond. Size (AWG/Kcmil) | Cond. Strands | Diameter Over Conductor (in) (cm) | Diameter Over Insulation (in) (cm) | Insulation Thickness (mils) (mm) | Diameter Over Shield (in) (cm) | Ground (No. x AWG) | Inner Jacket Thickness (mils) (mm) | Diameter Over Armor (in) (cm) | Jacket Thickness (mils) (mm) | Approx. OD (in) (cm) | Approx. Weight (lbs/1000') (kgs/km) | Max Pull Tension (lbs) (kg) | Min. Bend Radius (in) (cm) | |
| More Options |
4/0
4/0
|
18
18
|
0.474
1.20
|
0.863
2.19
|
175
4.45
|
0.923
2.34
|
1x6
1x6
|
110
2.79
|
2.607
6.62
|
60
1.52
|
2.727
6.93
|
3356
4994
|
3808
1727.28
|
19.1
48.51
|
| More Options |
250
250
|
35
35
|
0.520
1.32
|
0.916
2.33
|
175
4.45
|
0.976
2.48
|
1x4
1x4
|
110
2.79
|
2.721
6.91
|
60
1.52
|
2.841
7.22
|
3856
5738
|
4500
2041.16
|
19.9
50.55
|
| More Options |
750
750
|
58
58
|
0.908
2.31
|
1.326
3.37
|
175
4.45
|
1.406
3.57
|
1x2
1x2
|
125
3.18
|
3.700
9.40
|
70
1.78
|
3.840
9.75
|
6668
9923
|
13500
6123.49
|
26.9
68.33
|
* Strand count meets minimum number per ASTM
| Cond. Size (AWG/Kcmil) | DC Resistance @ 25C (ohms/1000') (ohms/km) | AC Resistance @ 75C (ohms/1000') (ohms/km) | Capacitive Reactance (Mohms x 1000ft) (Mohms x km) | Inductive Reactance (ohms/1000') (ohms/km) | Zero Sequence Impedance (ohms/1000') (ohms/1000') | Positive Sequence Impedance (ohms/1000') (ohms/1000') | Shield Short Circuit Current 6 Cycles (amps) | Direct Buried Ampacity @ 90C (amps) | In Air Ampacity @ 90C (amps) | |
| More Options |
4/0
4/0
|
0.084
0.13
|
0.105
0.16
|
0.029
0.04
|
0.037
0.06
|
0.475 + j0.369
0.475 + j0.369
|
0.105 + j0.036
0.105 + j0.036
|
2887
2887
|
294
294
|
268
268
|
| More Options |
250
250
|
0.071
0.11
|
0.090
0.13
|
0.027
0.04
|
0.037
0.06
|
0.457 + j0.348
0.457 + j0.348
|
0.090 + j0.035
0.090 + j0.035
|
3054
3054
|
323
323
|
296
296
|
| More Options |
750
750
|
0.024
0.04
|
0.033
0.05
|
0.018
0.03
|
0.032
0.05
|
0.364 + j0.236
0.364 + j0.236
|
0.034 + j0.030
0.034 + j0.030
|
4288
4288
|
563
563
|
566
566
|
* Inductive impedance is based on non-ferrous conduit with one diameter spacing center-to-center.
* CEC ampacities are based on:
3/C in air copper and aluminum: D17N
3/C direct buried copper and aluminum: D17E
Standards & References
- ASTM B801 Concentric-Lay-Stranded Conductors of 8000 Series Aluminum Alloy
- ASTM B836 Compact Rounded Stranded Aluminum Conductors
- CSA C22.2 No. 174 Cables in Hazardous Locations
- CSA C22.2 No. 2556 & No. 0.3 Wire and Cable Test Methods
- CSA C68.10 Shielded Power Cables for Commercial and Industrial Applications - 5 to 46 KV
- CSA C68.3 Shielded & Concentric Neutral Power Cable - 5 to 46 kV
- CSA LTGG [-40°C] - as per C68.10 - for Cold Bend and Impact rating
- CSA HL - for Hazardous Locations rating
- CSA SUN RES - for Sunlight Resistant rating
- ICEA S-93-639 (NEMA WC 74) 5-46 KV Shielded Power Cable
- ICEA T-29-520 Flame Test (210,000 BTU/Hr)
- IEEE 383 Flame Test (70,000 btu)
- IEEE 1202 FT4 Flame Test (70,000) BTU/hr Vertical Tray Test
- FT1 Flame Test (1,706 BTU/Hr nominal - Vertical Wire Flame Test)
- AEIC CS-8 Specification for extruded dielectric shielded power cables rated for 5 through 46KV (Qualification Test Requirements)

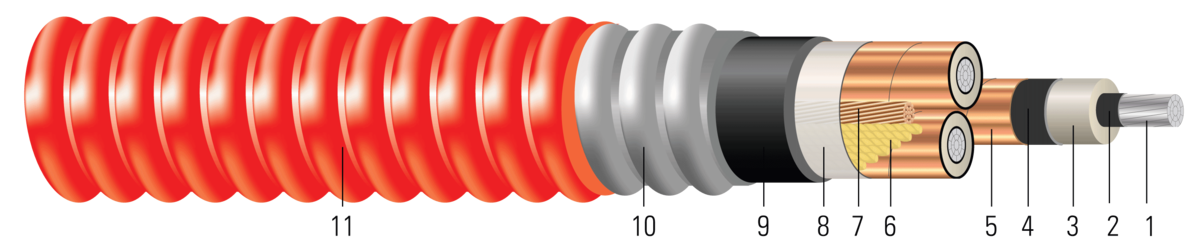

Construction
- Conductor: Class B compact stranded 8000 Series aluminum per ASTM B800 and ASTM B836
- Conductor Shield: Semi-conducting cross-linked copolymer; A conductor separator is used for cable size larger than or equal to 500 Kcmil
- Insulation: 175 Mils No Lead Ethylene Propylene Rubber (NL-EPR) 100% insulation level
- Insulation Shield: Strippable semi-conducting cross-linked copolymer
- Copper Tape Shield: Helically wrapped 5 mil copper tape with 25% overlap
- Filler: Interstices filled with non-hydroscoping/non-wicking fillers
- Grounding Conductor: Class B compressed stranded bare copper ground per ASTM B3 and ASTM B8
- Binder: Polypropylene tape
- Inner Jacket: PVC inner jacket
- Armour: Aluminum Interlocked Armour (AIA)
- Overall Jacket: Red Polyvinyl Chloride (PVC) Jacket
