16-26 CU 2/C BLACK/WHITE SOOW BLACK 90C 600V PAPER 250 FT
Southwire #: 56001801
Application & Features
Southwire Type SOOW Flexible Cords UL/ CSA listed are permitted for use as specified by Article 400 and related articles of the 2014 National Electrical Code. The cable is rated -40°C to 90°C, water, oil, and weather resistant. Southwire Type SOOW Flexible Cords are designed for extra hard usage on industrial equipment, heavy tools, battery chargers, portable lights, welding leads, marine dockside power, power extensions and mining applications.
Specifications
| Size (AWG or kcmil) (mm2) | 16 AWG 16 AWG | |
| No. of Conductors | 2 2 | |
| No. of Strands | 26 26 | |
| Nom. OD (mils) (mm) | 375 9.53 | mils mm |
| Nominal Total Weight (lbs/1000') (kgs/km) | 83 123 | lbs/1000' kgs/km |
| Conductor Colors | BLACK/WHITE BLACK/WHITE |
Standards & References
- UL 62
- CSA Standard 22.2 No. 49
- NEC 400
- NEC 501.140 Class I Division 2
- Passes CSA FT2 Flame Test
- MSHA
- Federal and Military Specification JC-580B
- RoHS-2 (European Directive 2011/65/EU )

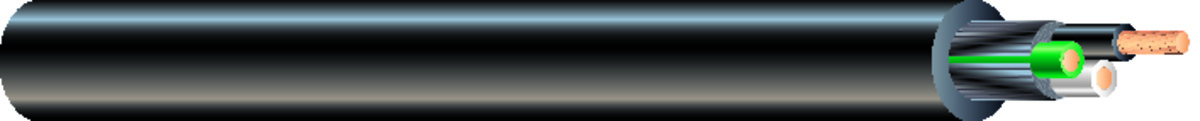

Construction
- Conductors: Class K stranded bare copper per ASTM B-174
- Insulation: EPDM
- Jacket: Black CPE (Other colors available upon request)
