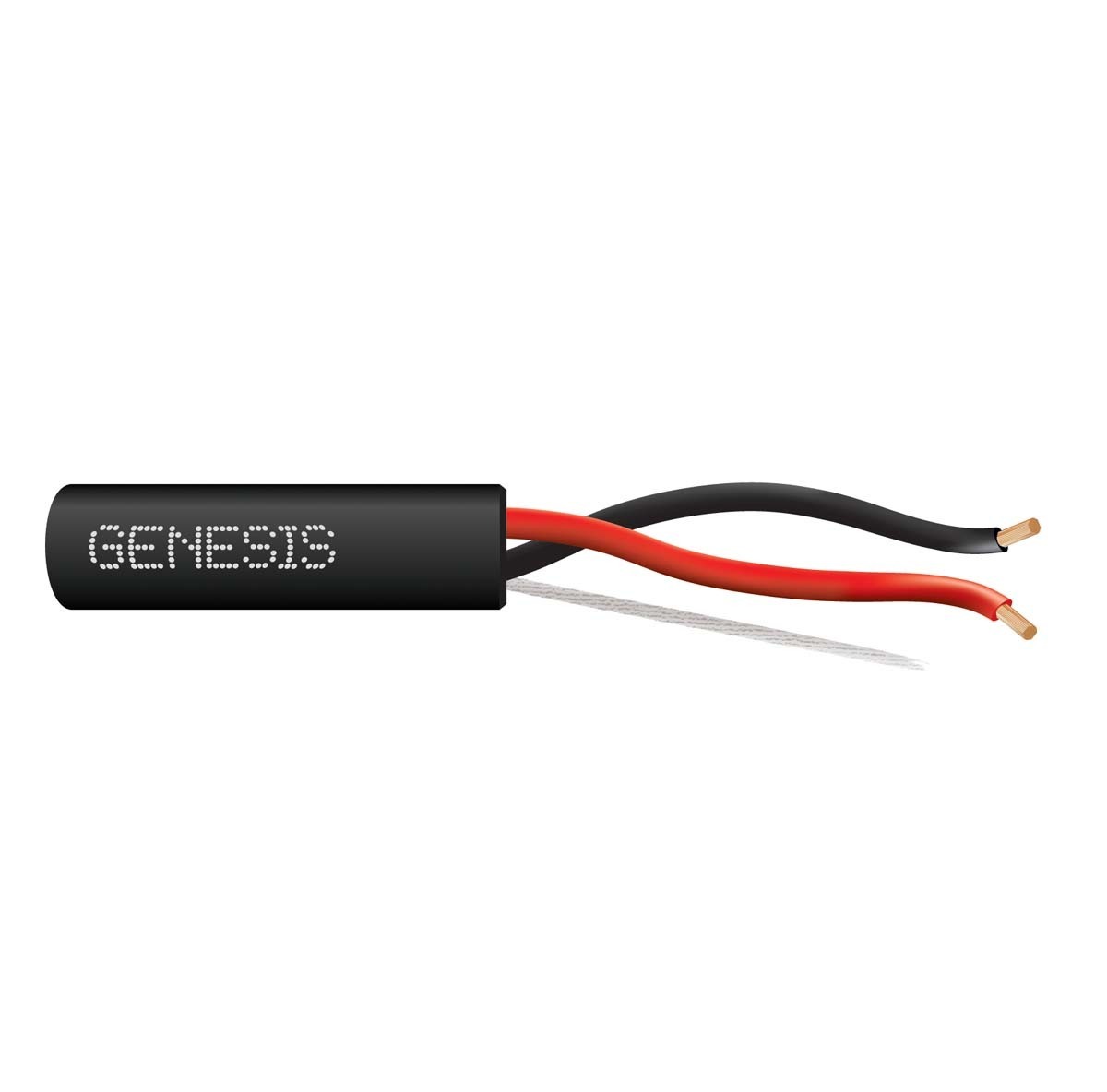

14-105 2/C OFHC AUDACIOUS CM/CL3 BLACK GEN 500 FT
Southwire #: 52855008
Application & Features
Genesis® Direct Burial Rated Audacious Sound Cable® is suitable for installation as follows:
- In burial applications with or without conduit.
- In outdoor locations, exposed to sunlight and moisture.
Specifications
| Size (AWG or kcmil) (mm2) | 14 AWG 14 AWG | |
| No. of Conductors | 2 2 | |
| Stranding | Stranded Stranded | |
| Shielding | Unshielded Unshielded | |
| Nominal Total Weight (lbs/1000') (kgs/km) | 57 85 | lbs/1000' kgs/km |
Standards & References
Genesis® Direct Burial Rated Audacious Sound Cable® meets or exceeds the following:
- UL 1685 - General Purpose Rated
- UL 444 - Communication Cables, Type CM
- UL 13 - Power-Limited Circuit Cables, Type CL3
- Direct Burial Rated
- Sunlight Resistant Rated
- REACH/RoHS Compliant
Construction
Genesis® Direct Burial Rated Audacious Sound Cable® features the following quality and convenience characteristics:
- Oxygen-Free Bare Copper conductors for excellent sound transmission and low voltage drop.
- SRPVC insulation.
- PVC jacket.
- Durable rip cord for efficient jacket stripping and removal.
- Countdown® Length Markings for easy tracking of usage and remaining cable.
- Rated for 300 Volts
- Rated for -20 °C to 60 °C.
