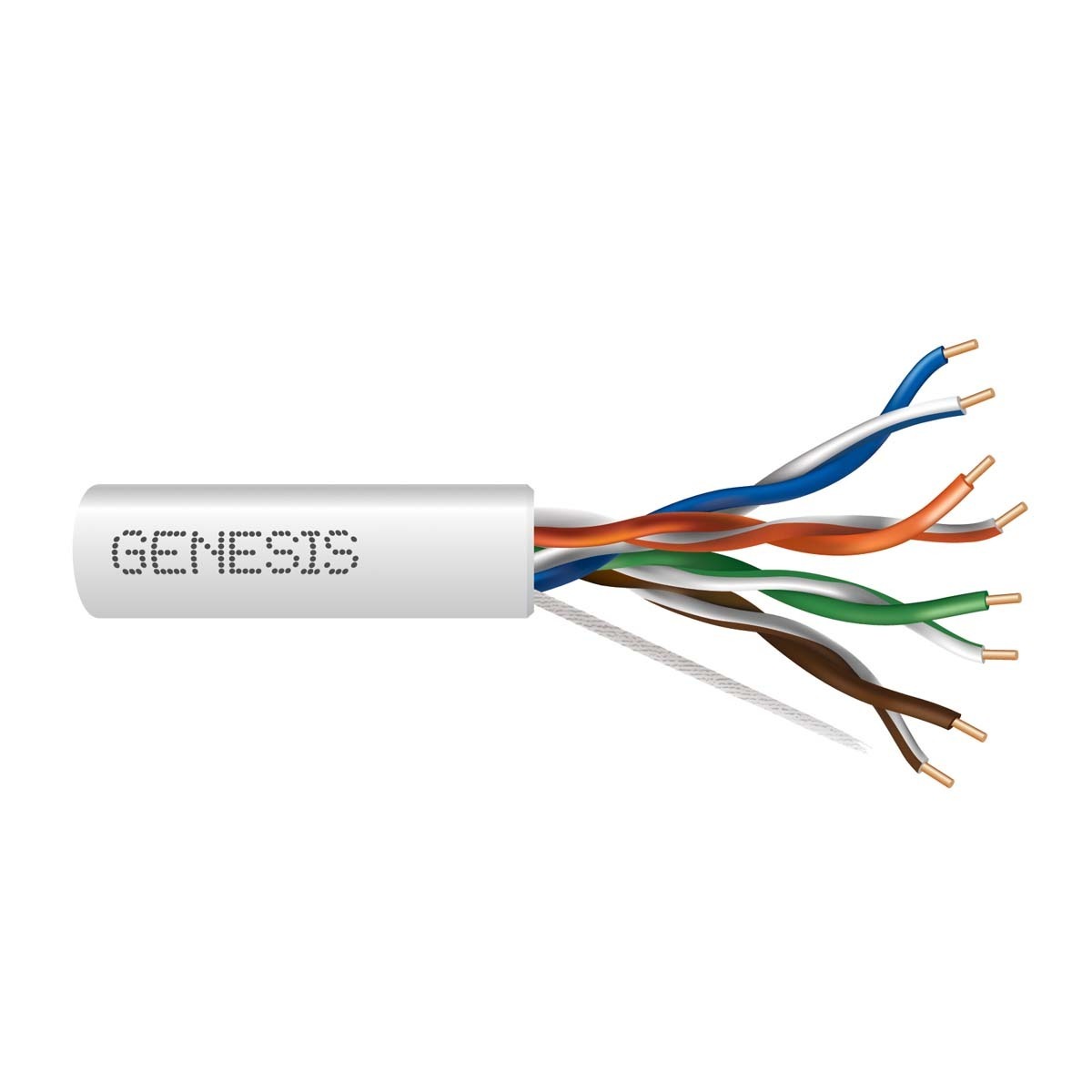

23/4PR CAT6 CMR/FT4 1000PB WHT GEN
Southwire #: 63601101
Application & Features
Genesis® Riser Rated Category 6 Cable is suitable for installation as follows:
- Installed in a metal raceway that complies with 300.22(B).
- Supported by solid bottom metal cable trays with solid metal covers.
- In risers.
- Within buildings in other than air-handling spaces and risers.
- Exposed to sunlight.
Specifications
| Size (AWG or kcmil) (mm2) | 23 AWG 23 AWG | |
| Number of Pairs | 4 4 | |
| Shielding | Unshielded Unshielded |
Standards & References
Genesis® Riser Rated Category 6 Cable meets or exceeds the following:
- UL 1666 - Riser Rated
- CSA C22.2 No. 2556 - FT4 Rated
- UL 444 - Communication Cables, Type CMR
- Sunlight Resistant Rated
- REACH/RoHS Compliant
- TIA-568.2-D Category 6
Construction
Genesis® Riser Rated Category 6 Cable features the following quality and convenience characteristics:
- Bare Copper conductors for excellent signal transmission and low voltage drop.
- Polypropylene or Polyethylene insulation.
- PVC jacket.
- Durable rip cord for efficient jacket stripping and removal.
- Countdown® Length Markings for easy tracking of usage and remaining cable.
- Rated for 300 Volts
- Rated for -20 °C to 75 °C.
