16-26 CU 4/C N/S CL3/FPL PVC BLACK GEN 1000 FT
Southwire #: 41521008
Application & Features
Genesis® Direct Burial Rated Fire Alarm Cable is suitable for installation as follows:
- Installed in a metal raceway that complies with 300.22(B).
- Supported by solid bottom metal cable trays with solid metal covers.
- Within buildings in other than air-handling spaces and risers.
- In burial applications with or without conduit.
Specifications
| Size (AWG or kcmil) (mm2) | 16 AWG 16 AWG | |
| No. of Conductors | 4 4 | |
| Stranding | Stranded Stranded | |
| Shielding | Unshielded Unshielded | |
| Nominal Total Weight (lbs/1000') (kgs/km) | 70 104 | lbs/1000' kgs/km |
Standards & References
Genesis® Direct Burial Rated Fire Alarm Cable meets or exceeds the following:
- UL 1685 - General Purpose Rated
- UL 1424 - Cables for Power-Limited Fire-Alarm Circuits, Type FPL
- UL 13 - Power-Limited Circuit Cables, Type CL2
- Direct Burial Rated
- Sunlight Resistant Rated
- REACH/RoHS Compliant

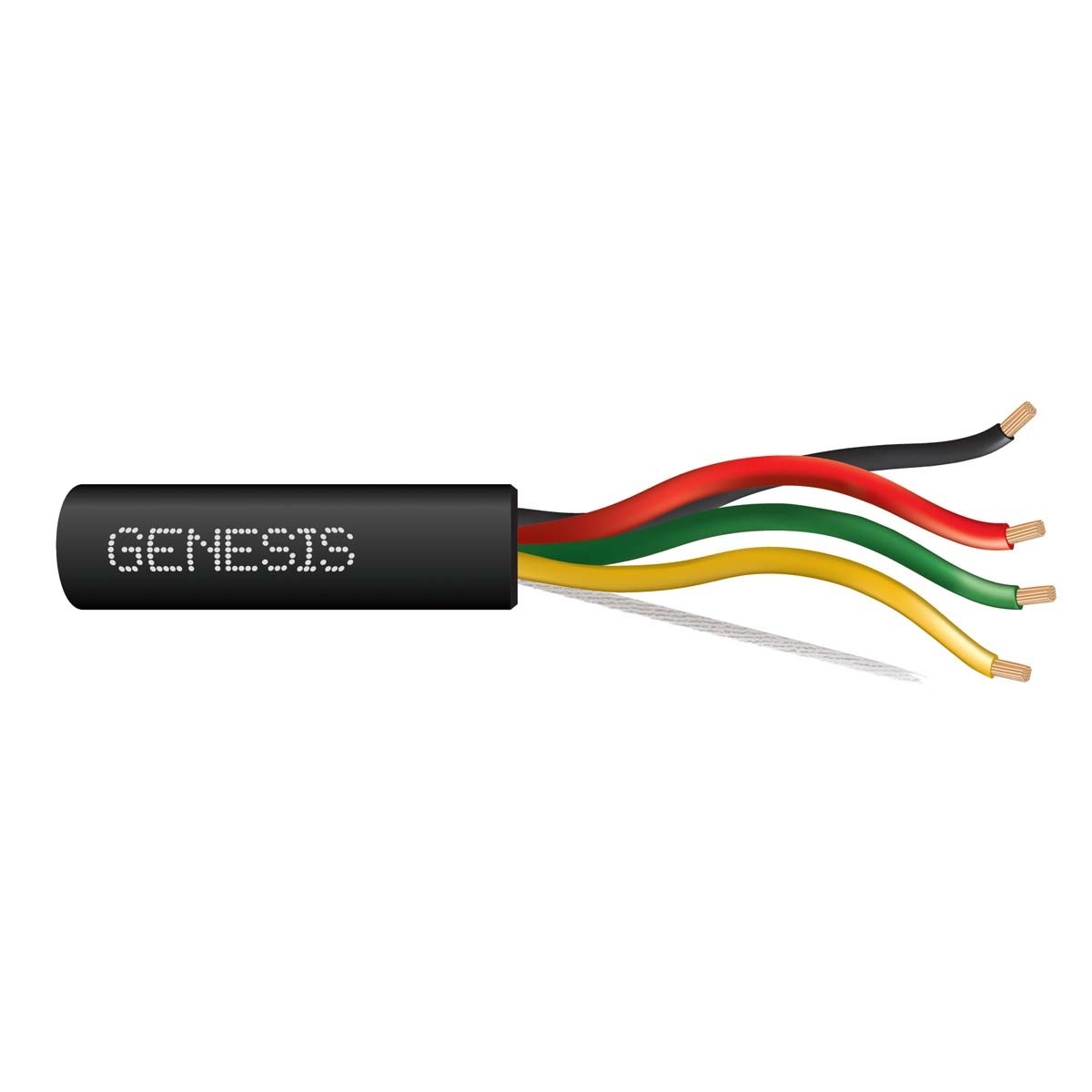

Construction
Genesis® Direct Burial Rated Fire Alarm Cable features the following quality and convenience characteristics:
- Bare Copper conductors for excellent conductivity and low voltage drop.
- SRPVC insulation.
- PVC jacket.
- Durable rip cord for efficient jacket stripping and removal.
- Countdown® Length Markings for easy tracking of usage and remaining cable.
- Rated for 300 Volts
- Rated for -20 °C to 75 °C.
