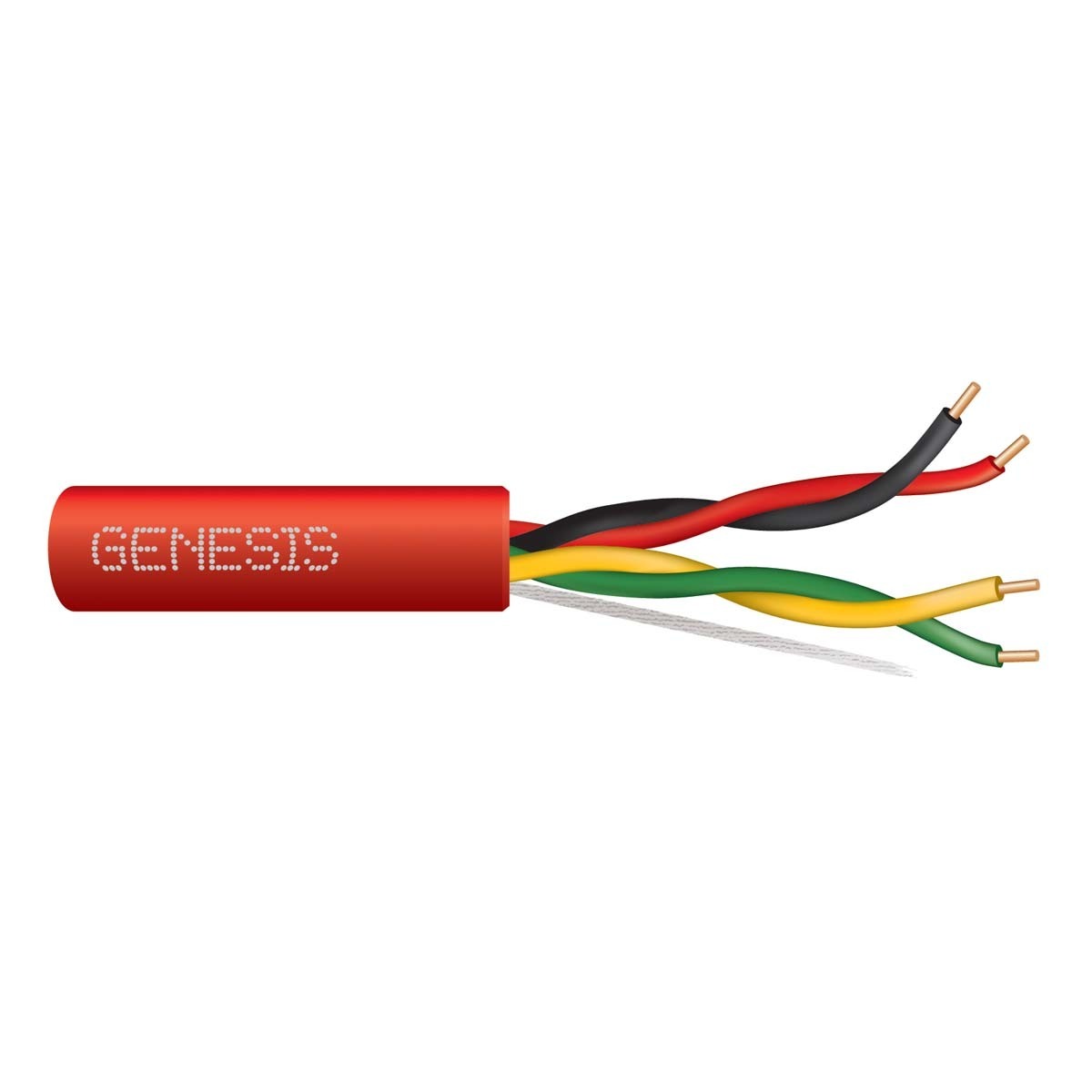

16/2 PAIR SOL CU N/S FPLP NYC PVDF RED GEN 1000 FT
Southwire #: 55031004
Application & Features
Genesis® NYC Certified Rated Fire Alarm Cable is suitable for installation as follows:
- In Fire Alarm Systems that require NYC Certified Fire Alarm Cable.
- In fabricated ducts as described in NEC 300.22(B).
- In other spaces used for environmental air as described in NEC 300.22(C).
- In risers.
- Within buildings in other than air-handling spaces and risers.
Specifications
| Size (AWG or kcmil) (mm2) | 16 AWG 16 AWG | |
| Number of Pairs | 2 2 | |
| Stranding | Solid Solid | |
| Shielding | Unshielded Unshielded | |
| Nom. OD (mils) (mm) | 228 5.79 | mils mm |
| Nominal Total Weight (lbs/1000') (kgs/km) | 53 78 | lbs/1000' kgs/km |
Standards & References
Genesis® NYC Certified Rated Fire Alarm Cable meets or exceeds the following:
- Classified NYC Certified Fire Alarm Cable
- NFPA 262 - Plenum Rated
- UL 1424 - Cables for Power-Limited Fire-Alarm Circuits, Type FPLP
- REACH/RoHS Compliant
Construction
Genesis® NYC Certified Rated Fire Alarm Cable features the following quality and convenience characteristics:
- Bare Copper conductors for excellent conductivity and low voltage drop.
- Fluoropolymer insulation.
- Fluoropolymer jacket.
- Countdown® Length Markings for easy tracking of usage and remaining cable.
- Rated for 300 Volts
- Rated for -20 °C to 150 °C.
