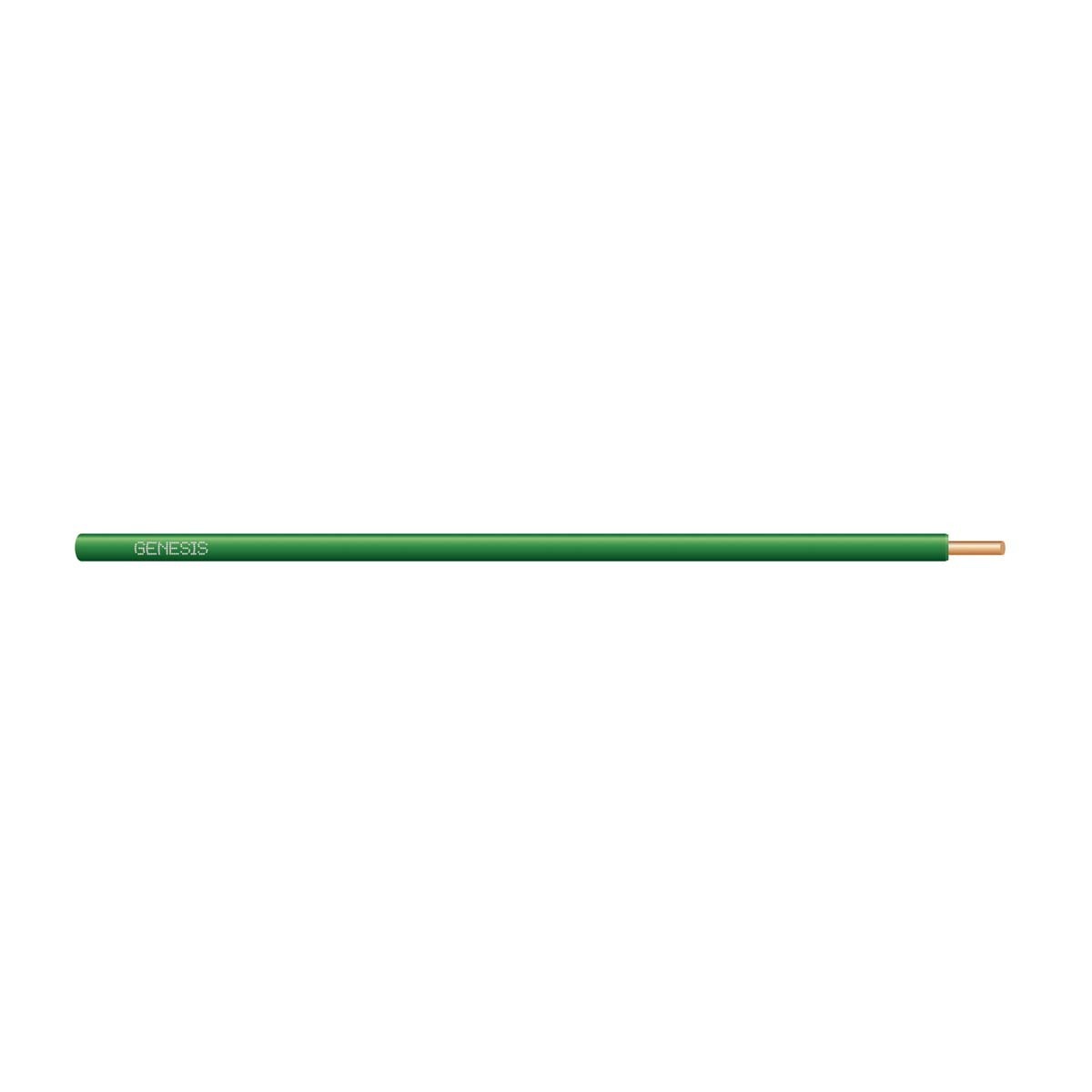

Insulated Ground Wire
Genesis Insulated Ground Wires provide a convenient means to ground low voltage devices and equipment.
Download Category Specifications
Excel Table
Application
Genesis® Insulated Ground Wire is suitable for installation as follows:
- Installed in a metal raceway that complies with 300.22(B).
- Supported by solid bottom metal cable trays with solid metal covers.
- Within buildings in other than air-handling spaces and risers.
- Exposed to sunlight.
Specifications
Select a set of products below for more information:
| Conductors | |||||||
| Size (AWG or kcmil) (mm2) | No. of Conductors | Stranding | No. of Strands | Shielding | Nominal Outside Diameter (mils) (mm) | Nominal Total Weight (lbs/1000') (kgs/km) | |
| 1131 |
14 AWG
14 AWG
|
1
1
|
Solid
Solid
|
|
Unshielded
Unshielded
|
|
17
26
|
Standards & References
Genesis® Insulated Ground Wire meets or exceeds the following:
- UL 1685 - General Purpose Rated
- UL 444 - Communication Cables, Type CM
- UL 13 - Power-Limited Circuit Cables, Type CL2
- Sunlight Resistant Rated
- REACH/RoHS Compliant
Construction
Genesis® Insulated Ground Wire features the following quality and convenience characteristics:
- Bare copper ground wire.
- Polypropylene insulation.
- Sequential length marking for easy tracking of usage.
- Rated for 150 Volts
- Rated for -20 °C to 60 °C.
