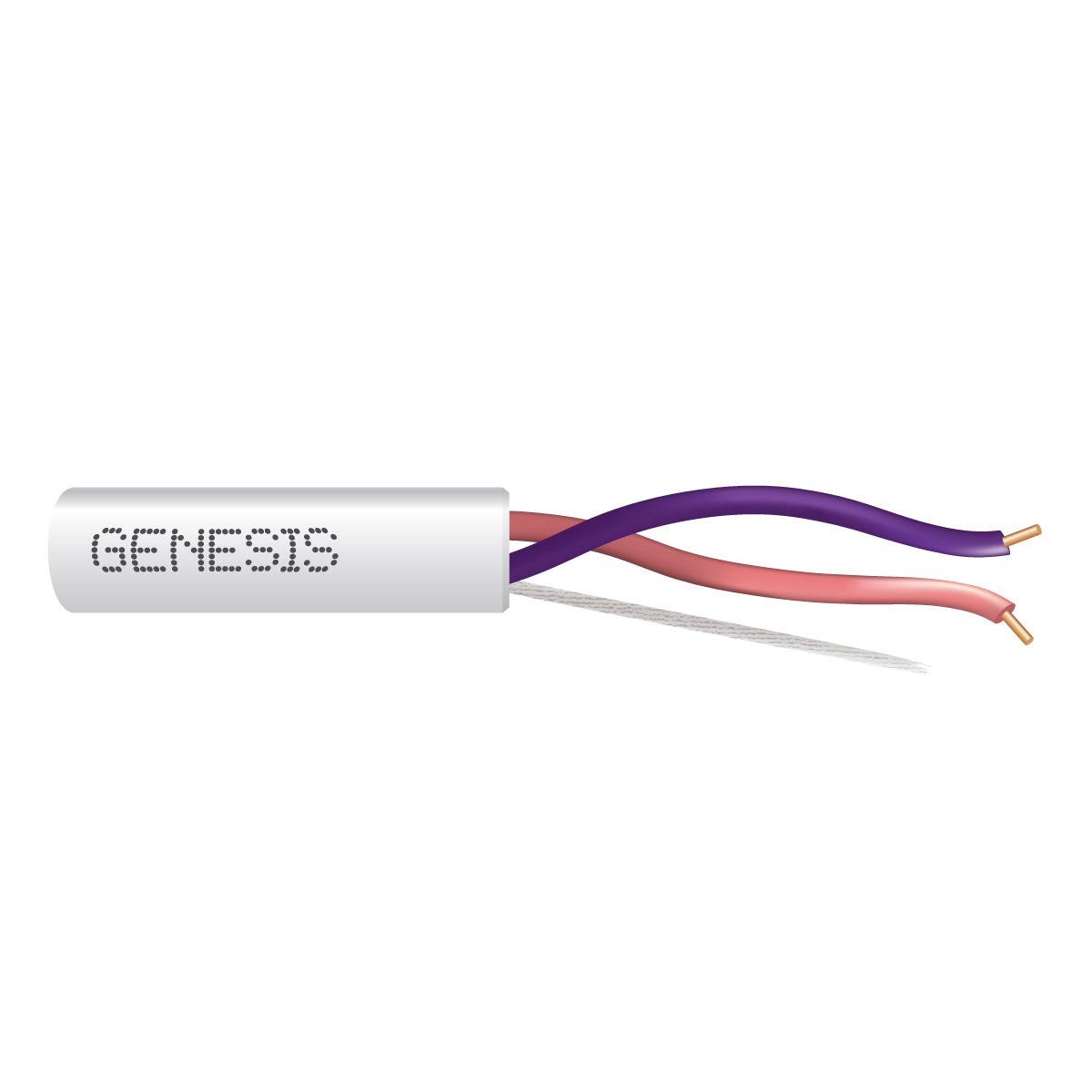

Low Voltage Dimming Cable, Plenum

16 SOL 2/C CU CMP/FT6 WHITE GEN 1000 FT

Southwire #: 31521001

Contact Us

Download Category Specifications

PDF Excel Table

Select Product Specifications

Construction

Outer Jacket / Armor Color

WHITE

Packaging

Application & Features

Genesis® Plenum Rated Low Voltage Dimming Cable is suitable for installation as follows:

In fabricated ducts as described in NEC 300.22(B).
In other spaces used for environmental air as described in NEC 300.22(C).
In risers.
Within buildings in other than air-handling spaces and risers.

Specifications

Size (AWG or kcmil) (mm2)	16 AWG 16 AWG
No. of Conductors	2 2
Stranding	Solid Solid
Shielding	Unshielded Unshielded
Nominal Total Weight (lbs/1000') (kgs/km)	23 34	lbs/1000' kgs/km

Standards & References

Genesis® Plenum Rated Low Voltage Dimming Cable meets or exceeds the following:

NFPA 262 - Plenum Rated
CSA C22.2 No. 2556 - FT6 Rated
UL 444 - Communication Cables, Type CMP
UL 1424 - Cables for Power-Limited Fire-Alarm Circuits, Type FPLP
UL 13 - Power-Limited Circuit Cables, Type CL3P
REACH/RoHS Compliant

Construction

Genesis® Plenum Rated Low Voltage Dimming Cable features the following quality and convenience characteristics:

Bare Copper conductors for excellent conductivity and low voltage drop.
Low-Smoke PVC insulation.
Plenum PVC jacket.
Durable rip cord for efficient jacket stripping and removal.
Countdown® Length Markings for easy tracking of usage and remaining cable.
Rated for 300 Volts
Rated for -20 °C to 75 °C.
