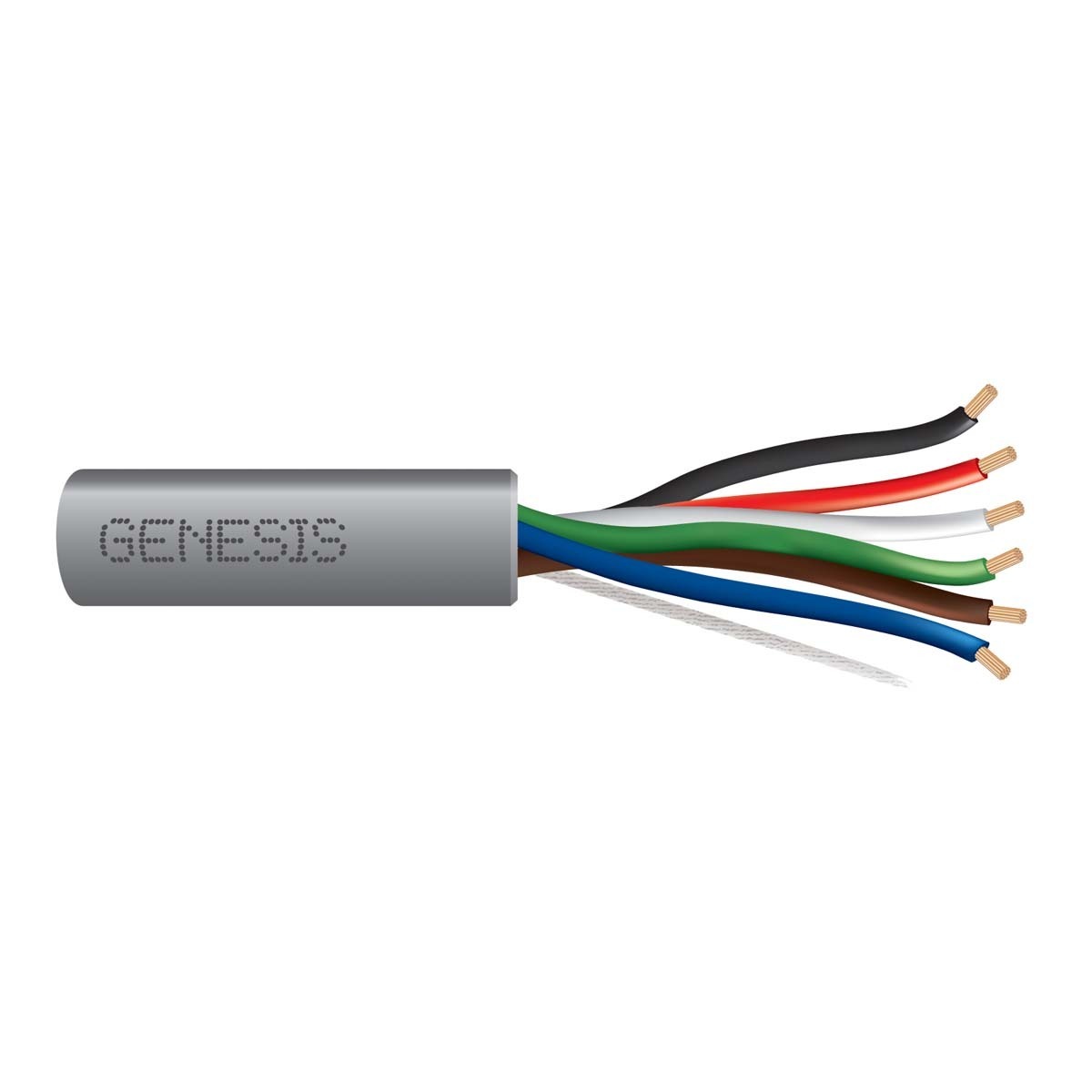

18-19 6/C CU CMR/FT4 GRAY GEN 1000 FT
Southwire #: 21161009
Application & Features
Genesis® Riser Rated Unshielded Multiconductor Cable is suitable for installation as follows:
- Installed in a metal raceway that complies with 300.22(B).
- Supported by solid bottom metal cable trays with solid metal covers.
- In risers.
- Within buildings in other than air-handling spaces and risers.
- Exposed to sunlight.
Specifications
| Size (AWG or kcmil) (mm2) | 18 AWG 18 AWG | |
| No. of Conductors | 6 6 | |
| Stranding | Stranded Stranded | |
| Shielding | Unshielded Unshielded | |
| Nominal Total Weight (lbs/1000') (kgs/km) | 40 59 | lbs/1000' kgs/km |
Standards & References
Genesis® Riser Rated Unshielded Multiconductor Cable meets or exceeds the following:
- UL 1666 - Riser Rated
- CSA C22.2 No. 2556 - FT4 Rated
- UL 444 - Communication Cables, Type CMR (22 AWG - 16 AWG)
- UL 1424 - Cables for Power-Limited Fire-Alarm Circuits, Type FPLR
- UL 13 - Power-Limited Circuit Cables, Type CL3R
- Sunlight Resistant Rated
- REACH/RoHS Compliant
Construction
Genesis® Riser Rated Unshielded Multiconductor Cable features the following quality and convenience characteristics:
- Bare Copper conductors for excellent conductivity and low voltage drop.
- Polypropylene insulation.
- PVC jacket.
- Durable rip cord on most constructions for efficient jacket stripping and removal.
- Countdown® Length Markings for easy tracking of usage and remaining cable. Speed Bag variations use sequential length markings.
- Rated for 300 Volts
- Rated for -20 °C to 75 °C.
