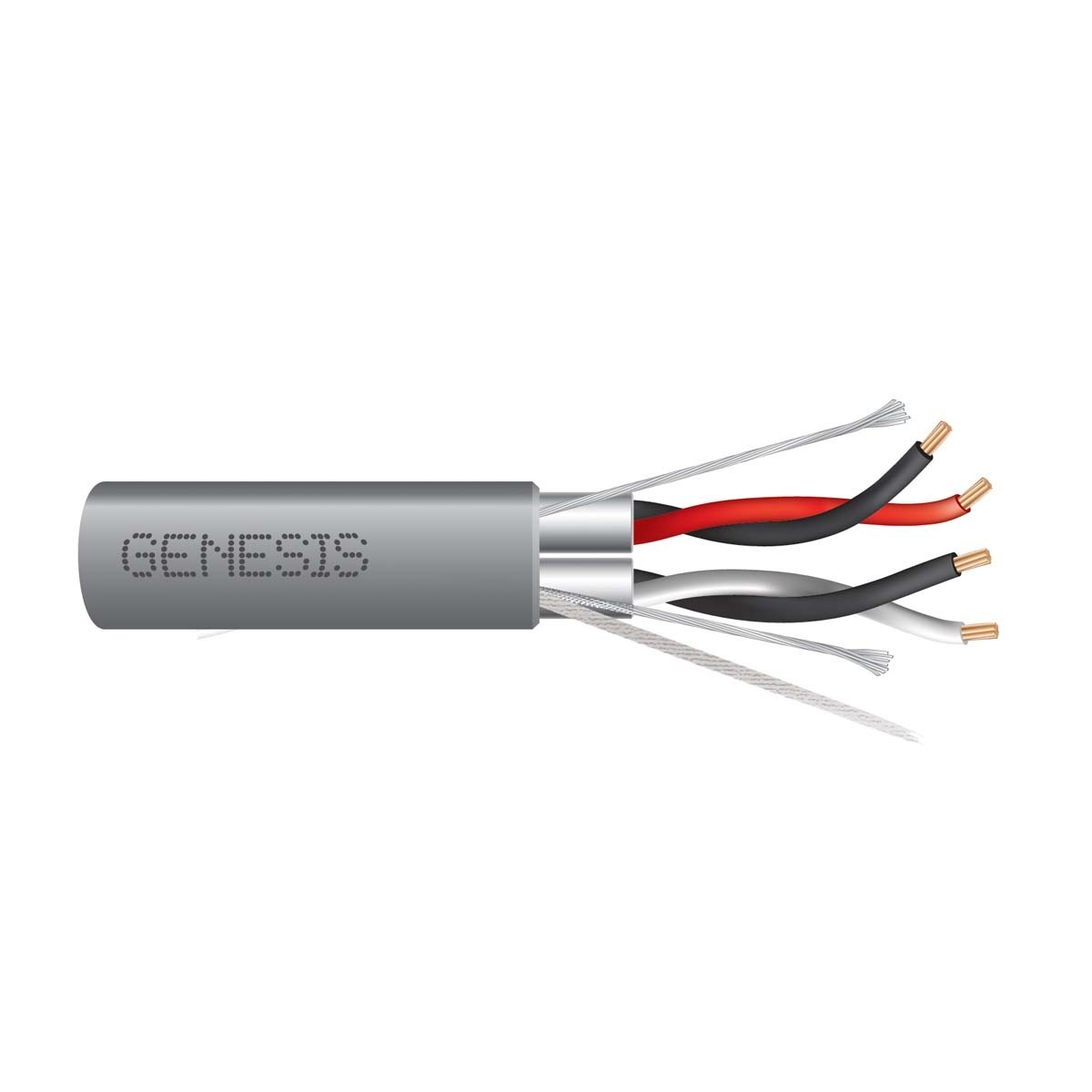

22/2 PAIR STR CU CM/CL2 EPS GRAY GEN 1000 FT
Southwire #: 12641109
Application
Genesis® General Purpose Rated Individually Shielded Pair Multipair Cable is suitable for installation as follows:
- Installed in a metal raceway that complies with 300.22(B).
- Supported by solid bottom metal cable trays with solid metal covers.
- Within buildings in other than air-handling spaces and risers.
- Exposed to sunlight.
Specifications
| Size (AWG or kcmil) (mm2) | 22 AWG 22 AWG | |
| Number of Pairs | 2 2 | |
| Stranding | Stranded Stranded | |
| Shielding | Each Pair Shielded Each Pair Shielded | |
| Nom. OD (mils) (mm) | 123 3.14 | mils mm |
| Nominal Total Weight (lbs/1000') (kgs/km) | 16 24 | lbs/1000' kgs/km |
Standards & References
Genesis® General Purpose Rated Individually Shielded Pair Multipair Cable meets or exceeds the following:
- UL 1685 - General Purpose Rated
- UL 444 - Communication Cables, Type CM
- UL 13 - Power-Limited Circuit Cables, Type CL2
- Sunlight Resistant Rated
- REACH/RoHS Compliant
Construction
Genesis® General Purpose Rated Individually Shielded Pair Multipair Cable features the following quality and convenience characteristics:
- Bare Copper conductors for excellent conductivity and low voltage drop.
- Polypropylene insulation.
- Foil shield over each pair.
- PVC jacket.
- Durable rip cord for efficient jacket stripping and removal.
- Countdown® Length Markings for easy tracking of usage and remaining cable.
- Rated for 300 Volts
- Rated for -20 °C to 60 °C.
