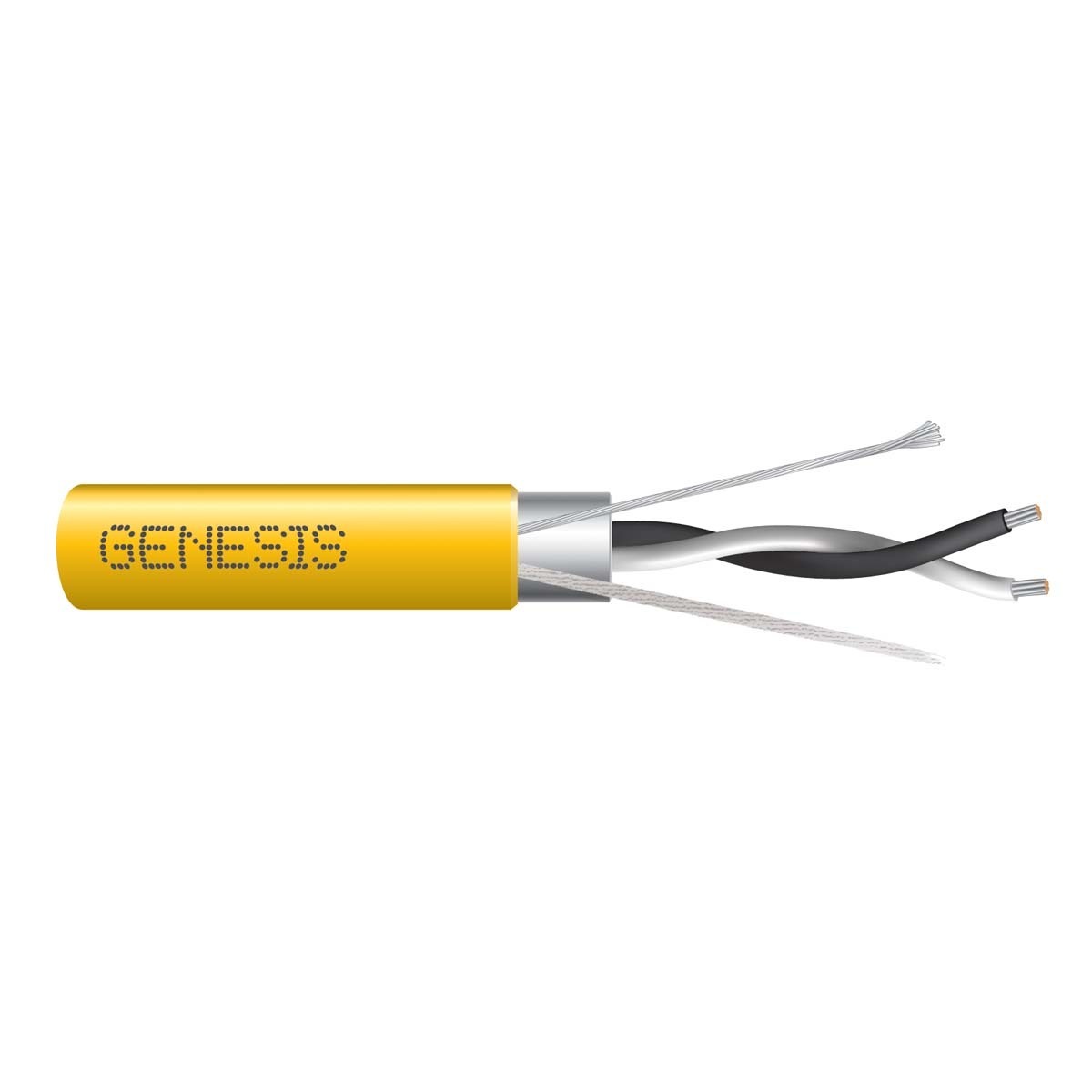

RS-485 Shielded Cable, Plenum
Genesis Building Automation Cables deliver reliable high-speed data transmission and optimized performance for today's smart building networks. Designed for the EIA-485 standard.
Download Category Specifications
Excel Table
Application
Genesis® Plenum Rated RS-485 Shielded Cable is suitable for installation as follows:
- In fabricated ducts as described in NEC 300.22(B).
- In other spaces used for environmental air as described in NEC 300.22(C).
- In risers.
- Within buildings in other than air-handling spaces and risers.
Specifications
Select a set of products below for more information:
| Conductors | |||||||
| Size (AWG or kcmil) (mm2) | Number of Pairs | Stranding | No. of Strands | Shielding | Nom. OD (mils) (mm) | Nominal Total Weight (lbs/1000') (kgs/km) | |
| 3322 |
18 AWG
18 AWG
|
1
1
|
Stranded
Stranded
|
|
Shielded
Shielded
|
249
6.33
|
34
51
|
| 3324 |
22 AWG
22 AWG
|
1
1
|
Stranded
Stranded
|
|
Shielded
Shielded
|
203
5.17
|
27
40
|
| 3251 |
22 AWG
22 AWG
|
1
1
|
Stranded
Stranded
|
|
Shielded
Shielded
|
185
4.70
|
19
28
|
| 3320 |
22 AWG
22 AWG
|
1
1
|
Stranded
Stranded
|
|
Shielded
Shielded
|
191
4.86
|
20
30
|
| 3328 |
22 AWG
22 AWG
|
2
2
|
Stranded
Stranded
|
|
Shielded
Shielded
|
200
5.10
|
33
49
|
| 3319 |
24 AWG
24 AWG
|
1
1
|
Stranded
Stranded
|
|
Shielded
Shielded
|
179
4.55
|
17
25
|
Standards & References
Genesis® Plenum Rated RS-485 Shielded Cable meets or exceeds the following:
- NFPA 262 - Plenum Rated
- CSA C22.2 No. 2556 - FT6 Rated
- UL 444 - Communication Cables, Type CMP
- UL 1424 - Cables for Power-Limited Fire-Alarm Circuits, Type FPLP
- UL 13 - Power-Limited Circuit Cables, Type CL3P
- REACH/RoHS Compliant
Construction
Genesis® Plenum Rated RS-485 Shielded Cable features the following quality and convenience characteristics:
- Bare Copper or Tinned Copper conductors for excellent signal transmission and low voltage drop.
- FEP insulation.
- Foil shield over all conductors.
- Plenum PVC jacket.
- Durable rip cord for efficient jacket stripping and removal.
- Countdown® Length Markings for easy tracking of usage and remaining cable.
- Rated for 300 Volts
- Rated for -20 °C to 75 °C.
