6 SOL SD CU 110 MILS/XLP RISER 250 FT
Southwire #: 49637202

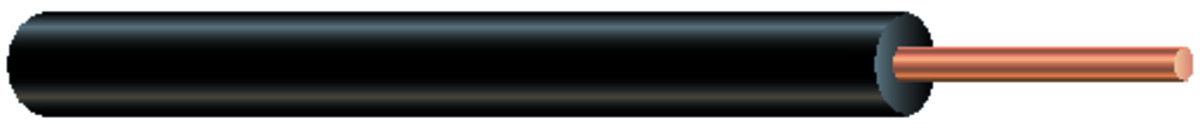

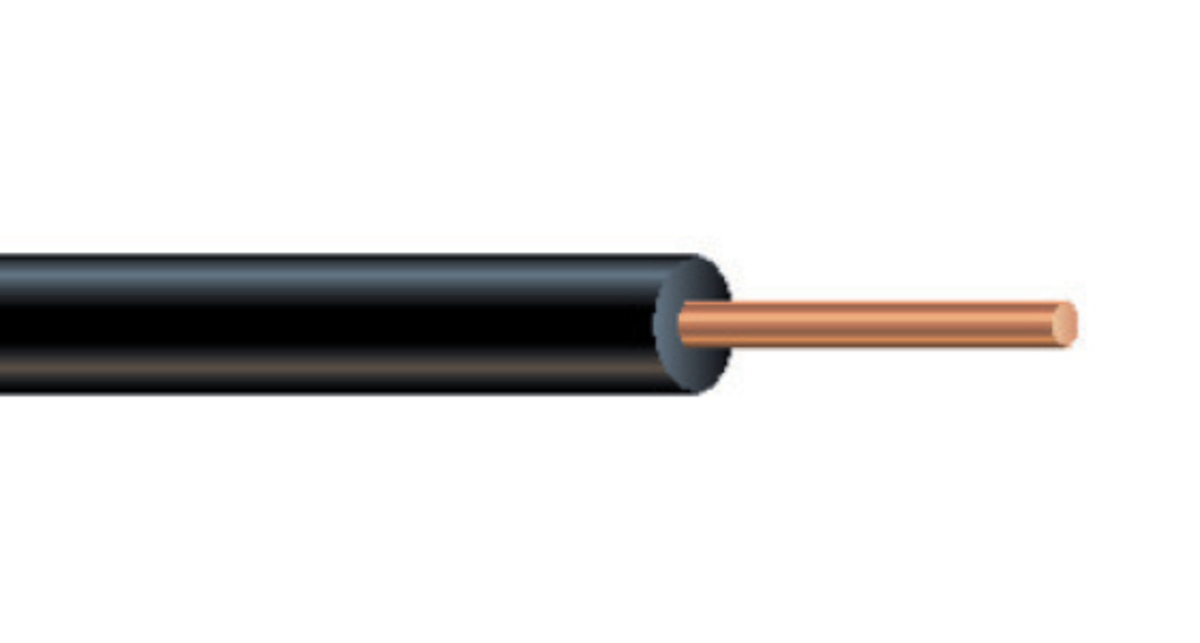

Copper Transformer Riser Wire. Black Polyethylene Covered. Solid or Stranded Soft Drawn Copper Conductor.
Download Category Specifications
Excel Table
Application & Features
Used on transformers as connection between line conductor and transformer primary bushing in applications where protection from momentary contact from wildlife is needed. Although not treated as an insulation, the covering on transformer riser wire does provide an increased level of protection from momentary grounded contacts caused by wildlife, excessive wind and tree limbs or other grounded objects in the proximity of the high voltage lead. May be used on distribution system voltages up to 35kV line-to-line.
Specifications
| No. of Conductors | 1 1 | |
| Size (AWG or kcmil) (mm2) | 6 AWG 6 AWG | |
| No. of Strands | 1 1 | |
| Insulation Thickness (mils) (mm) | 110 2.79 | mils mm |
| Nom. OD (mils) (mm) | 382 9.70 | mils mm |
| Nominal Total Weight (lbs/1000') (kgs/km) | 117 174 | lbs/1000' kgs/km |
Standards & References
Southwire’s transformer riser wire meets or exceeds the following ASTM specifications:
- B 3 Soft or Annealed Copper Wire
- B 8 Concentric-Lay-Stranded Copper Conductors, Hard, Medium-Hard, or Soft.
Construction
Conductors are solid soft drawn copper. The covering is high molecular weight polyethylene, black.
