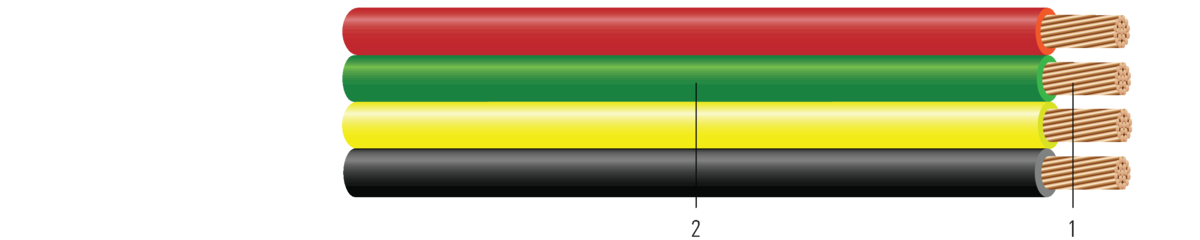

For use in residential, farm and industrial water well applications. Grounded and ungrounded water well cable systems. Conductors are twisted and colored black, red, and yellow when supplied with three conductors and green ground. Cable is supplied without an overall jacket.
| Cond. Size | Conductor Number | Cond. Strands | Diameter Over Conductor (in) (cm) | Insulation Thickness (mils) (mm) | Approx. OD (in) (cm) | Copper Weight (lbs/1000') (kgs/km) | Approx. Weight (lbs/1000') (kgs/km) | |
| More Options |
14 AWG
14 AWG
|
3
3
|
7
7
|
0.070
0.18
|
30
0.76
|
0.166 x 0.558
0.42 x 1.42
|
38
57
|
68
101
|
| More Options |
14 AWG
14 AWG
|
4
4
|
7
7
|
0.070
0.18
|
30
0.76
|
0.166 x 0.745
0.42 x 1.89
|
50
74
|
90
134
|
| More Options |
12 AWG
12 AWG
|
3
3
|
19
19
|
0.090
0.23
|
30
0.76
|
0.185 x 0.615
0.47 x 1.56
|
60
89
|
94
140
|
| More Options |
12 AWG
12 AWG
|
4
4
|
19
19
|
0.090
0.23
|
30
0.76
|
0.185 x 0.830
0.47 x 2.11
|
80
119
|
126
188
|
| More Options |
10 AWG
10 AWG
|
3
3
|
19
19
|
0.117
0.30
|
30
0.76
|
0.210 x 0.690
0.53 x 1.75
|
96
143
|
136
202
|
| More Options |
10 AWG
10 AWG
|
4
4
|
19
19
|
0.117
0.30
|
30
0.76
|
0.210 x 0.930
0.53 x 2.36
|
128
190
|
181
269
|
| More Options |
8 AWG
8 AWG
|
3
3
|
19
19
|
0.143
0.36
|
45
1.14
|
0.027 x 0.809
0.07 x 2.05
|
133
198
|
202
301
|
| More Options |
8 AWG
8 AWG
|
4
4
|
19
19
|
0.143
0.36
|
45
1.14
|
0.270 x 1.109
0.69 x 2.82
|
184
274
|
276
411
|
| More Options |
6 AWG
6 AWG
|
4
4
|
19
19
|
0.179
0.45
|
60
1.52
|
0.304 x 1.272
0.77 x 3.23
|
294
438
|
401
597
|
| More Options |
4 AWG
4 AWG
|
4
4
|
19
19
|
0.226
0.57
|
60
1.52
|
0.365 x 1.490
0.93 x 3.78
|
437
650
|
568
845
|
* 4 AWG (563667) is all Yellow with identifying stripes printed on the Yellow insulation.
| Cond. Size | Conductor Number | DC Resistance at 25C (ohms/1000') (ohms/km) | AC Resistance at 75C (ohms/1000') (ohms/km) | Inductive Reactance (ohms/1000') (ohms/km) | Max Pull Tension (lbs) (kg) | Min. Bend Radius (in) (cm) | Allowable Ampacity Raceway 75C | Allowable Ampacity Raceway 90C |
|
14 AWG
14 AWG
|
3
3
|
2.631
3.92
|
3.170
4.72
|
0.058
0.09
|
98
44.45
|
2.2
5.59
|
20
20
|
|
|
14 AWG
14 AWG
|
4
4
|
2.631
3.92
|
3.170
4.72
|
0.058
0.09
|
105
47.63
|
3.0
7.62
|
16
16
|
|
|
12 AWG
12 AWG
|
3
3
|
1.662
2.47
|
2.002
2.98
|
0.054
0.08
|
156
70.76
|
2.5
6.35
|
25
25
|
|
|
12 AWG
12 AWG
|
4
4
|
1.662
2.47
|
2.002
2.98
|
0.054
0.08
|
167
75.75
|
3.3
8.38
|
20
20
|
|
|
10 AWG
10 AWG
|
3
3
|
1.040
1.55
|
1.253
1.86
|
0.050
0.07
|
249
112.94
|
2.8
7.11
|
35
35
|
|
|
10 AWG
10 AWG
|
4
4
|
1.040
1.55
|
1.253
1.86
|
0.050
0.07
|
265
120.20
|
3.7
9.40
|
28
28
|
|
|
8 AWG
8 AWG
|
3
3
|
0.653
0.97
|
0.786
1.17
|
0.052
0.08
|
396
179.62
|
3.2
8.13
|
50
50
|
|
|
8 AWG
8 AWG
|
4
4
|
0.653
0.97
|
0.786
1.17
|
0.052
0.08
|
422
191.42
|
5.5
13.97
|
40
40
|
44
44
|
|
6 AWG
6 AWG
|
4
4
|
0.411
0.61
|
0.495
0.74
|
0.051
0.08
|
671
304.36
|
6.4
16.26
|
52
52
|
60
60
|
|
4 AWG
4 AWG
|
4
4
|
0.258
0.38
|
0.310
0.46
|
0.048
0.07
|
1068
484.44
|
7.5
19.05
|
68
68
|
|
