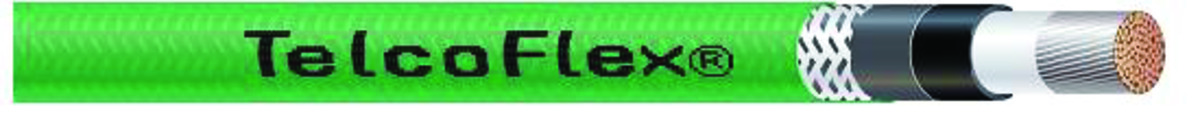

2-168 TINNED CU TELCOFLEX-G L6 600V GREEN 3000 FT
Southwire #: 59790401
Green thermoset insulation, 90°C wet or dry continuous operating temperature, 130°C emergency, 250°C short circuit
Application & Features
TELCOFLEX® -G L6 telecom grounding cable is suitable for use in conduit and underground duct. Sunlight and oil resistant. Maximum side wall pressure 500 Lbs./Ft. Suitable for DC and AC.
Specifications
| Size (AWG or kcmil) (mm2) | 2 AWG 2 AWG | |
| No. of Strands | 168 168 | |
| Nominal Total Weight (lbs/1000') (kgs/km) | 228 339 | lbs/1000' kgs/km |
| Allowable Ampacity at 75C | 115 115 | |
| Allowable Ampacity at 90C | 130 130 | |
| Insulation Thickness (mils) (mm) | 45 1.14 | mils mm |
| DC Resistance at 25°C | 0 0 |
Standards & References
- ASTM B1 Hard-Drawn Copper
- ASTM B3 Standard Specification for Soft or Annealed Copper Wire
- ASTM B33 Standard Specification for Tin-Coated Soft or Annealed Copper Wire
- ASTM B172 Standard Specification for Rope-Lay-Stranded Copper Conductors Having Bunch-Stranded Copper Conductors
- UL 44 Thermoset-Insulated Wires and Cables
- ICEA S-95-658 (NEMA WC70) Power Cables Rated 2000 Volts or Less for the Distribution of Electrical Energy
- RoHS-3 Complies with European Directive 2015/863
- REACH - European Community Regulation
Construction
- Conductor: Tinned copper Class K (10AWG), Class I (8 AWG & larger)
- Separator Tape:Optional Opaque Mylar tape
- Insulation:Green thermoset insulation, 90°C wet or dry continuous operating temperature, 130°C emergency, 250°C short circuit
