8 STR CU 5/C BLACK/WHITE/RED/GREEN/ORANGE SOOW BLACK 90C 600V PAPER NON-UL/NON-CSA 1000 FT
Southwire #: 55810502
600 Volt, 90°C Flexible Cord. Heat, Moisture and Oil Resistant EPDM Rubber Insulation and Heat, Moisture and Oil Resistant Flexible CPE Jacket, Non UL / Non CSA.
Application & Features
Southwire Royal® Non UL/Non CSA SOOW cord is designed for use with industrial equipment, heavy tools, battery chargers, portable lights and power extensions, suitable for outdoor applications. The cable is rated -40°C to 90°C, sunlight, water, oil, and weather resistant. Southwire Type SOOW Flexible Cords are permitted for use as specified by Article 400 and related articles of the 2014 National Electrical Code
Specifications
| Size (AWG or kcmil) (mm2) | 8 AWG 8 AWG | |
| No. of Conductors | 5 5 | |
| No. of Strands | 133 133 | |
| Nom. OD (mils) (mm) | 834 21.18 | mils mm |
| Nominal Total Weight (lbs/1000') (kgs/km) | 492 732 | lbs/1000' kgs/km |
| Allowable Ampacity | 28 28 | |
| Nom. DC Resistance (Conductor) | 0.72 0.72 | |
| Conductor Colors | BLACK/WHITE/RED/GREEN/ORANGE BLACK/WHITE/RED/GREEN/ORANGE |
Standards & References
- ASTM B3, B174
- NEC 400
- MSHA
- Federal and Military Specification JC-580B
- RoHS-2 (European Directive 2011/65/EU )

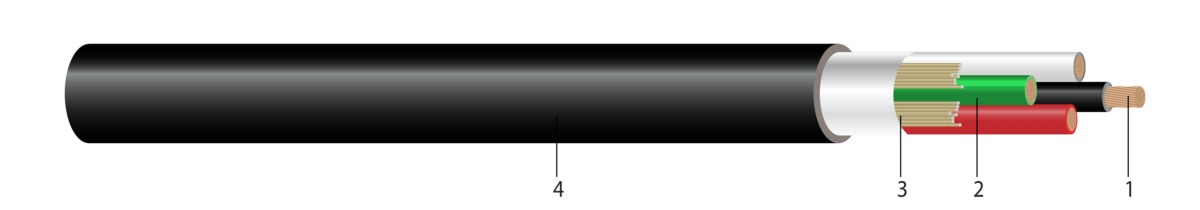

Construction
- Conductors: Class K stranded bare copper per ASTM B-174
- Insulation: EPDM
- Jacket: Black CPE (Other colors available upon request)
