16-65 4/C OFHC AUDACIOUS CMR/CL2R WHITE GEN 500 FT
Southwire #: 54745501
Download Category Specifications
Excel Table
Application
Genesis® Riser Rated Audacious Sound Cable® is suitable for installation as follows:
- Installed in a metal raceway that complies with 300.22(B).
- Supported by solid bottom metal cable trays with solid metal covers.
- In risers.
- Within buildings in other than air-handling spaces and risers.
- Exposed to sunlight.
Specifications
| Stock # | 54745501 54745501 | |
| Size (AWG or kcmil) (mm2) | 16 AWG 16 AWG | |
| No. of Conductors | 4 4 | |
| Stranding | Stranded Stranded | |
| Shielding | Unshielded Unshielded | |
| Nominal Total Weight (lbs/1000') (kgs/km) | 49 73 | lbs/1000' kgs/km |
Standards & References
Genesis® Riser Rated Audacious Sound Cable® meets or exceeds the following:
- UL 1666 - Riser Rated
- CSA C22.2 No. 2556 - FT4 Rated
- UL 444 - Communication Cables, Type CMR
- UL 13 - Power-Limited Circuit Cables, Type CL2R
- Sunlight Resistant Rated
- REACH/RoHS Compliant

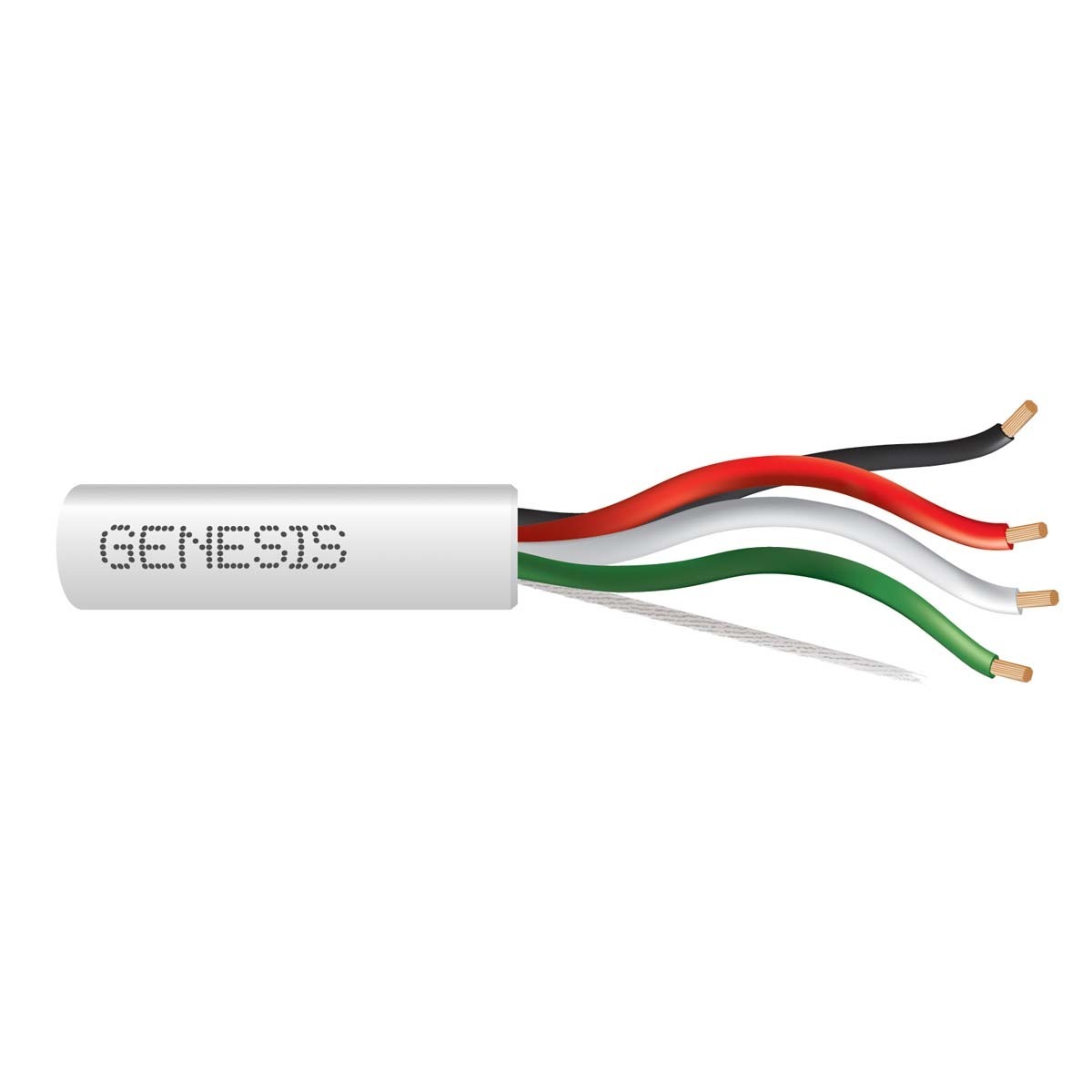

Construction
Genesis® Riser Rated Audacious Sound Cable® features the following quality and convenience characteristics:
- Oxygen-Free Bare Copper conductors for excellent sound transmission and low voltage drop.
- PVC insulation.
- PVC jacket.
- Durable rip cord for efficient jacket stripping and removal.
- Countdown® Length Markings for easy tracking of usage and remaining cable.
- Rated for 300 Volts
- Rated for -20 °C to 75 °C.
