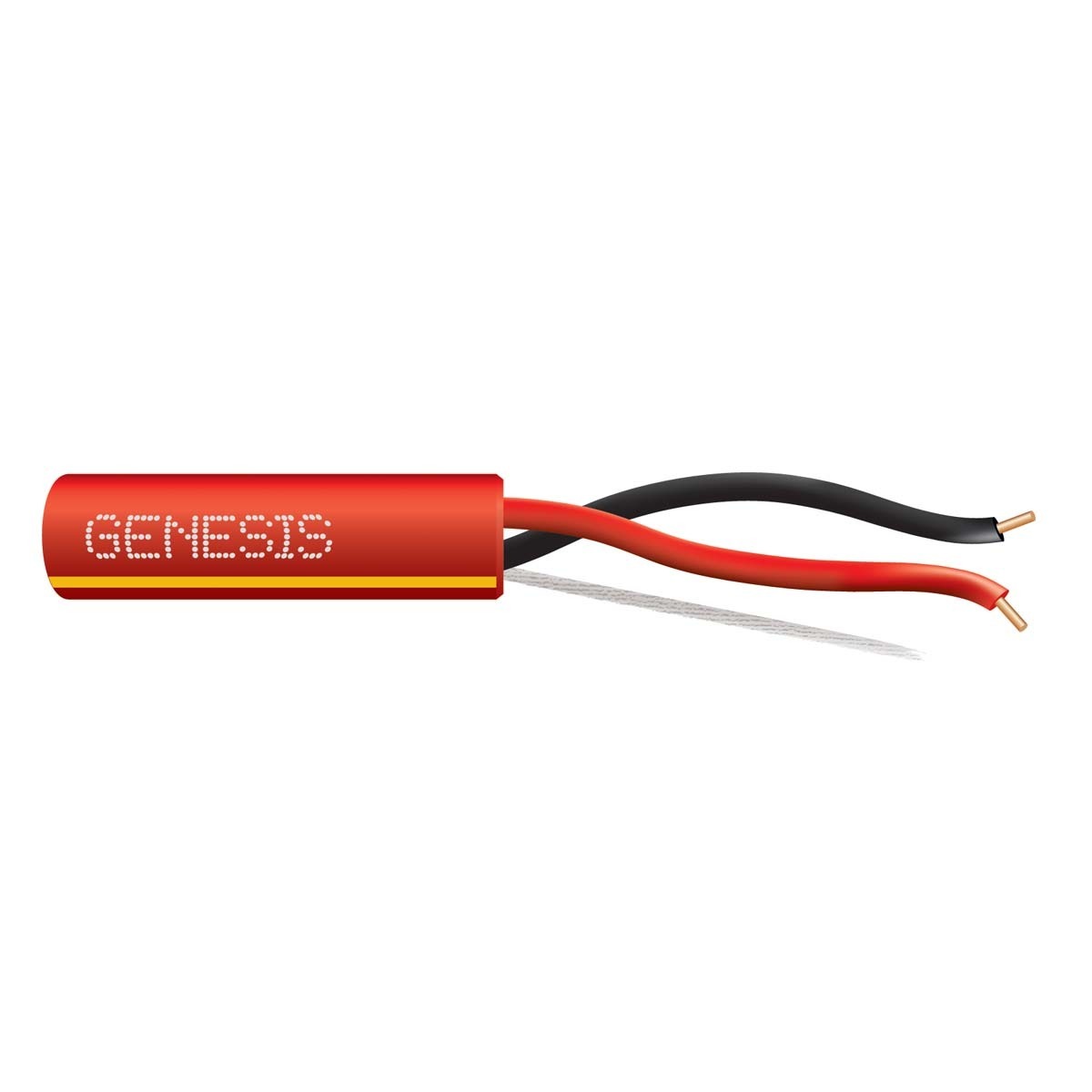

18 SOL CU 2/C N/S CL3P/FPLP PVC-LS RED-YELLOW STRIPE GEN 1000 FT
Southwire #: 4506104Y
Download Category Specifications
Excel Table
Application
Genesis® Plenum Rated Unshielded Fire Alarm Cable is suitable for installation as follows:
- In fabricated ducts as described in NEC 300.22(B).
- In other spaces used for environmental air as described in NEC 300.22(C).
- In risers.
- Within buildings in other than air-handling spaces and risers.
Specifications
| Stock # | 4506104Y 4506104Y | |
| Size (AWG or kcmil) (mm2) | 18 AWG 18 AWG | |
| No. of Conductors | 2 2 | |
| Stranding | Solid Solid | |
| Shielding | Unshielded Unshielded | |
| Nominal Total Weight (lbs/1000') (kgs/km) | 15 22 | lbs/1000' kgs/km |
Standards & References
Genesis® Plenum Rated Unshielded Fire Alarm Cable meets or exceeds the following:
- NFPA 262 - Plenum Rated
- CSA C22.2 No. 2556 - FT6 Rated
- UL 1424 - Cables for Power-Limited Fire-Alarm Circuits, Type FPLP
- UL 13 - Power-Limited Circuit Cables, Type CL3P
- REACH/RoHS Compliant
Construction
Genesis® Plenum Rated Unshielded Fire Alarm Cable features the following quality and convenience characteristics:
- Bare Copper conductors for excellent conductivity and low voltage drop.
- Low-Smoke PVC insulation.
- Plenum PVC jacket.
- Durable rip cord for efficient jacket stripping and removal.
- Countdown® Length Markings for easy tracking of usage and remaining cable.
- Rated for 300 Volts
- Rated for -20 °C to 75 °C.
